ICM ICM2920 Goodman Replacement Boards, New Products
Replaces: Goodman: PCBAG123, PCBAG123S direct spark ignition controls
$79.00 USD
SKU:
ICM2920
ID:
PH501-2S9-3256
Categories:
PRODUCT INFO
Integrated Furnace Control Boards

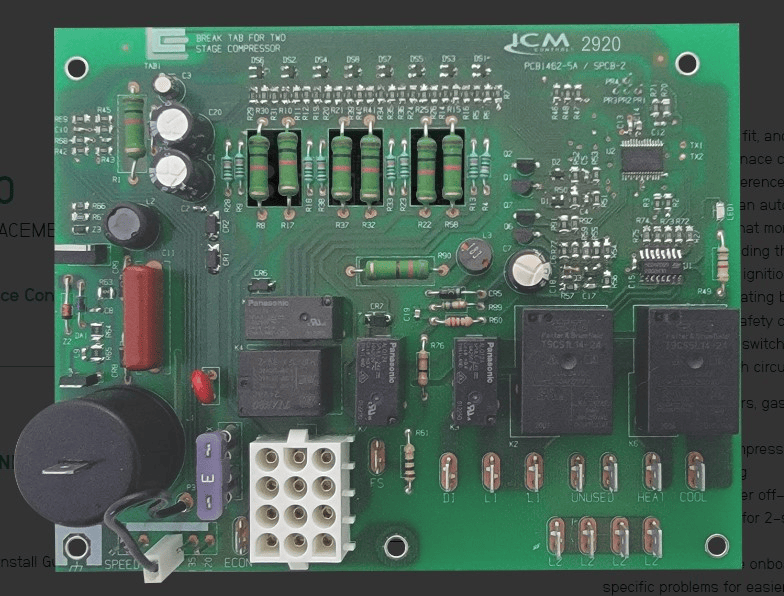

The ICM2920 is a form, fit, and functional replacement for the furnace control boards shown in the cross-reference section of this guide.
The ICM2920 is an automated gas ignition control board that monitors the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining complete safety circuit monitoring including the high limit switch, roll out switch, and auxiliary limit switch circuits.
SPECIFICATIONS
| General Information | |
| Line voltage: | 24 – 230 VAC (RMS) |
| Line frequency: | 50/60 Hz |
| Control voltage: | 18-30 VAC, 0.15A maximum |
| Fuse rating: | 3 A |
| Relay contact ratings: | Heat/cool N.O.: 15A FLA, 30A LRA @230 VAC, Heat/cool N.C.: 16A FLA, 36A LRA @230 VAC |
| Inducer: | 4A FLA, 4A LRA @ 230 VAC |
| Gas valve: | 1.5A @ 24VAC pilot duty |
| Compressor contactor: | 1.0 A @ 24 VAC |
