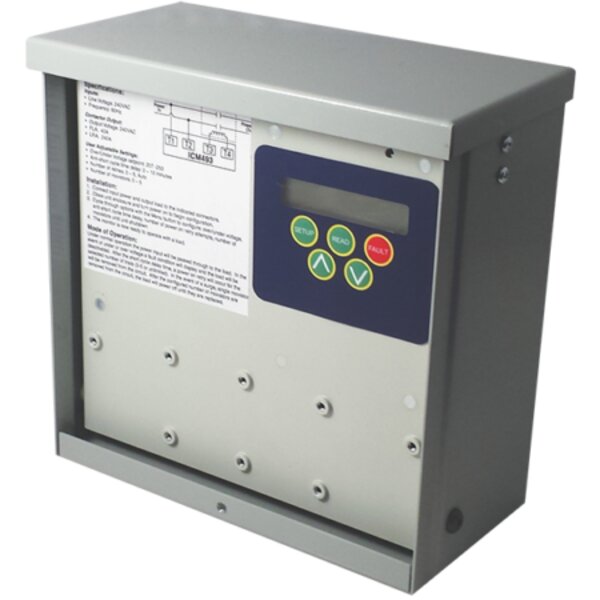

ICM ICM493 Single Phase Motor Protection

The ICM493 is an advanced, single-phase line voltage monitor with a bank of surge arresters for added protection against lightning strikes. Includes a built-in 40A contactor. Housed in a NEMA Rated 3R enclosure for outdoor installations. UL Recognized. Installs easily between the service disconnect and the condensing unit. Ideal for Mini-Splits or other valuable, single-phase equipment.

Features:

• Protects against over and under voltage rapid short cycling caused by transients, and high power surges
• Ideal for mini-splits or other condensing units
• Easy to view, backlit digital display
• Bank of five L-L Surge Arresters
• Built-in 40A Contactor -NEMA-rated 3R enclosure for outdoor use
• Easy installation and setup\

Specifications:

• User Adjustable Settings
• Voltage Setpoint: 207-253 VAC
• Anti-Short Cycle Delay: 0-10 Minutes
• Number of Surge Arresters Required for Operation: 0-5
• Number of Retries: 0-5, Auto
• Inputs
• Line Voltage: 200 to 300 VAC
• Frequency: 50-60 Hz
• Accuracy: +/- 2%, User Calibration
• Output
• Type: Contactor; 2-Pole
• Contactor Ratings: 40A FLA, 240A LRA
