ICM ICM6501 Fan Blower Controls,Fan Controls
Replaces: ClimaTek: CB201; First Company: CB201
$162.15 USD
SKU:
ICM6501
ID:
PH501-2S9-3267
Categories:
PRODUCT INFO
ClimaTek Air Handling Replacement Control

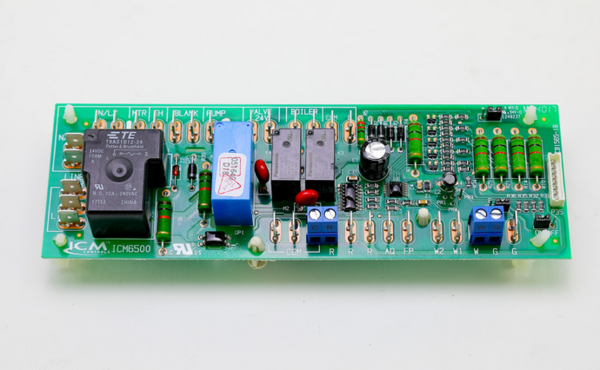

The ICM6501 air handler control board operates with hot water heating systems. When the thermostat calls for Heat, the control will energize the Water Pump, Valve and Boiler. The blower will energize at the selected speed after 90 seconds to allow the coil to preheat.
DETAILS:
- Controls the water pump, valve, fan and boiler in a hot water heating
system - Jumper selectable high and low speed fan speed selection for 2 speed
blower operations - Integral fan delays for both heating and standard fan operation
- Monitors safety switches including the pressure switch and freeze
protection switch - Test mode feature for system diagnostic purposes
- LED status Light to aid in diagnosing power issues
SPECIFICATIONS
| General Information | |
| Input Voltage | 24 VAC, 120/240 VAC, 50/60 Hz |
| Valve Output | 24 VAC, 50/60 Hz, 5A |
| Blower Fan | 120/240 VAC, 50/60 Hz, 9.8 FLA |
| Water Pump | 120/240 VAC, 50/60 Hz, 1.5 FLA |
| Boiler | 24 VAC, 50/60 Hz, 5A |
| Timing | Fan on delay: 0 secs, Fan off delay: 45 secs, Heat fan on delay: 90 secs, Heat fan off delay: 20 secs |
| Surrounding Air Temperature Rating: | -40ºF to 167ºF (-40ºC to 75ºC) |
