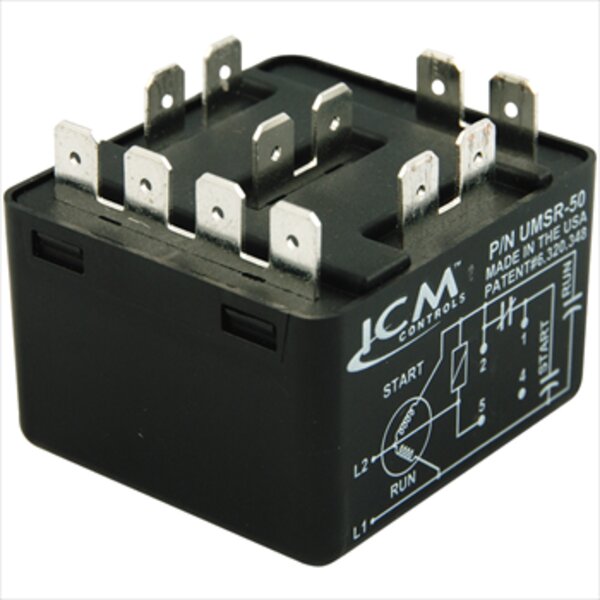

ICM UMSR-50 Universal Motor Starting Relay
Replaces: All standard potential relays SUPCO: APR5, SUPR
$24.45 USD
SKU:
UMSR-50B-LF
ID:
PH501-2S9-3203
Categories:
PRODUCT INFO
ICM's Universal Motor Starting Relay incorporates patented differential voltage sensing and a non-positional mounting configuration to offer a single replacement for all standard potential relays. Great way to reduce inventory. Ideal for A/C, commercial refrigeration, heat pump or any single phase motor application up to 10 HP
Features
- Replacement for all standard potential relays
- Patented differential voltage sensing
- No user-adjustments required
- Non-positional mounting configuration
- Intelligent capacitor discharge circuitry (E-Series models only)
- 50A switching capabilities
- Universal mounting bracket for easy installation
- .250" quick connect termination
- Safety timer
SPECIFICATIONS
| General Information | |
| Product Type | Starting Relay |
| Max. Voltage Contact Rating Input | 502 VAC (absolute) |
| Operating Position | Non-positional |
| Insulation | Class B (130°C); Conforms to IEC 1000-standards (6kV impulse/6kV contact) |
| Contact Ratings | 50A (break only), 400 VAC cos Ø= 0.7 to 0.8 |
| Voltage Rating Input | 110-270 VAC (Single Phase) |
| Motor Power Rating | Up to 10 HP |
| Safety Time Out | Approx. 1-second per 100 microfareds |
| Consumption | 5VA max |
