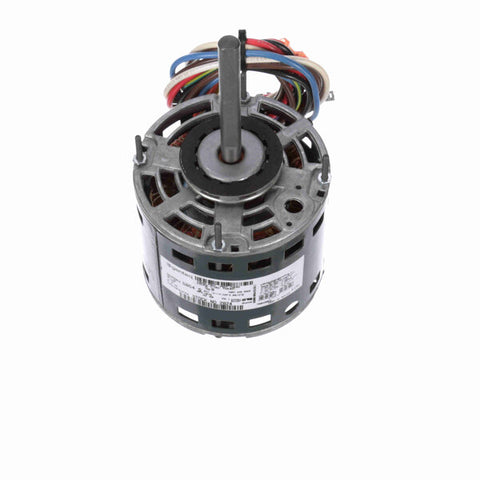

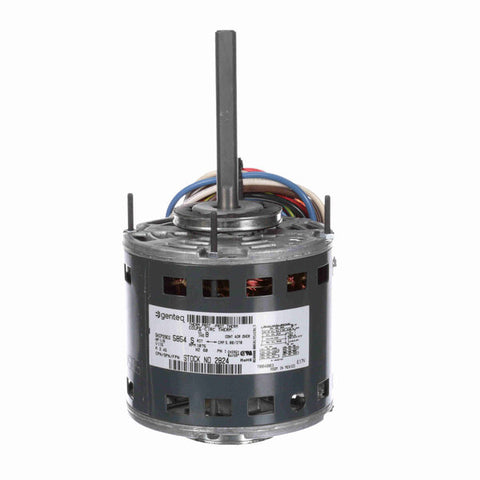

Fasco Direct Drive Motor, 1075 RPM, 1/8 HP, 115 V, 42 Frame, Open Air Over
- Direct Drive Fan & Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Resilient Ring Mounting
$345.00 USD
PRODUCT INFO
Applications
Direct drive furnace blowers, air conditioners, fans, blowers and locations where the motor is located in the airstream
Features
Rotation: electrically reversible. Resilient rings for base mounting. 3-speed. Sleeve bearing for all-angle mounting. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585023265 |
| Output HP | 1/8 Hp |
| Frequency | 60 Hz |
| Current | 2.45 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.66 in |
| Shaft Extension | 4.0 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 8.95 in |
| Shaft Diameter | 0.500 in |
