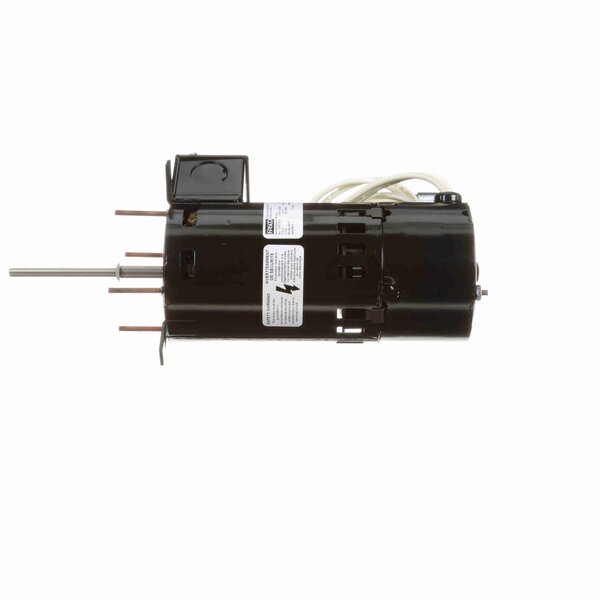

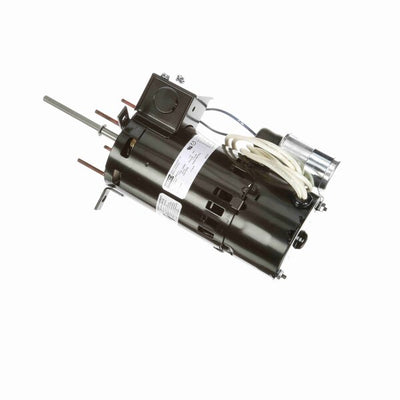

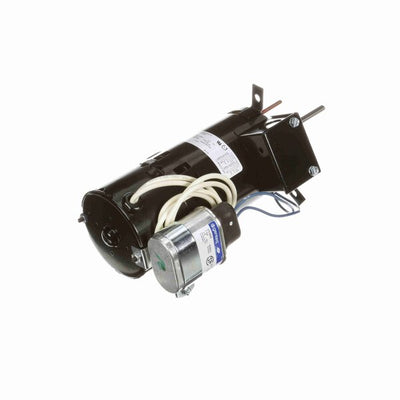

Fasco Draft Inducer Motor, 3000 RPM, 1/10 HP, 115 V, 3.3" Diameter, Semi Enclosed
- Draft Inducer Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- 21" Leads, 21" Switch Leads
- Extended Studs Shaft End, Lug Mount
$475.00 USD
PRODUCT INFO
Features
All-angle mount. 24V pilot duty safety switch. Sleeve bearing (except as noted). 5/16" shaft adapter included. With centrifugal safety switch. Thermal overload protector. Self-cooling. Open ventilated
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029892 |
| Output HP | 1/10 Hp |
| Frequency | 60 Hz |
| Current | 1.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.80 in |
| Shaft Extension | 3.80 in |
| Rotation | Reversible |
| Frame Material | Steel |
| Overall Length | 10.92 in |
| Shaft Diameter | 0.250 in |
