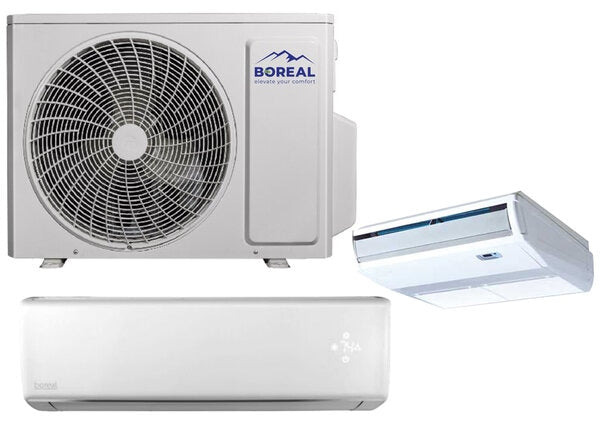

Boreal 18,000 BTU 21 SEER2 Dual Zone Wall Mounted/Universal Floor/Ceiling Mini-Split Heat Pump System (9k, 9k) 208-230V

Availability:
In-Stock

Rated Capacity: 18,000 BTU Cooling
Product Includes
(1) Boreal - 18,000 BTU - Outdoor Condenser - Single Zone Only (MBRS18HPJ1OE)
(1) Boreal  9,000 BTU Universal Floor/Ceiling Unit (BFLR09HPJ1FA)
(1) Boreal 9,000 BTU Wall Mount Unit (3BRS09HPJ1IA)
Wireless Remote Control
Required, but NOT included: 1/4" x 3/8" (x2) Line sets
FREE SHIPPING

$3,121.00 USD

Title
Buy Now
SKU:
MBRS18HPJ1OE; 3BRS09HPJ1IA; BFLR09HPJ1FA
ID:
BRS100-0051; BRS100-0056; BRS100-0070

PRODUCT INFO

  • SEER: 21
  • Power Supply: 208-230V / 1Ph / 60Hz
  • Refrigerant Charge: R-410a
  • 5 Years Parts, 7 Years Compressor – Residential & Commercial

SPECIFICATIONS

General Information

Outdoor Condenser
MBRS18HPJ1OE
System Type
HEAT PUMP
Cooling Capacity - Nominal Btu/h
Heating Capacity - Nominal Btu/h18000 (7000 - 19600)
SEER2 / EER221 / 12
HSPF2 / COP
10 / 3.8
Energy Star®
YES
Cooling Capacity (Min-Max) Btu/h17000 (7000 - 19600)
Heating Capacity (Min-Max) Btu/h
18000 (7000 - 19600)
SEER2 / EER216 / 11
HSPF2 / COP
8 / 3.3
Energy Star®
NO
Cooling Capacity (Min - Max) Btu/h
17000 (7000 - 19600)
Heating Capacity (Min - Max) Btu/h
18000 (7000 - 19600)
SEER2 / EER2
18.5 / 11.5
HSPF2 / COP
9 / 3.6
Energy Star®
NO
Cooling Temperature Range °F-22 - 118
Heating Temperature Range °F-22 - 75
Refrigerant TypeR410A
Compressor Type
G-10 / 2 - STAGE INVERTER
Sound Pressure Level dB(A)
53
External Dimensions (W x H x D)  in
32-3/8 × 21-11/16 × 13-7/8
Package Dimension (W x H x D) in
34-3/8 × 24-7/16 × 15-11/16
Weight (Net / Gross) lbs77.2 / 82.7
Refrigerant Charge - R410A oz
45.9
Additional Charge oz/ft
0.2
Port Size (Liquid - Gas Port A (in)1/4 - 3/8
Port Size (Liquid - Gas Port B (in)
1/4 - 3/8
Port Size (Liquid - Gas Port C (in)

Port Size (Liquid - Gas Port D (in)

Port Size (Liquid - Gas Port E (in)

Port Size (Liquid - Gas Port D (in)
33
Pipe Length (Min - Max) ft
10 - 131
Pipe Length to furthest Indoor Unit ft
66
Max. Pipe Elevation ft
49
Power Supply208-230V / 1Ph / 60Hz
Voltage Range (Min - Max) VAC
187 - 253
Rated Current - Cooling A10
Rated Current - Heating A
10
MCA A
15
MOCP A
20
Main Power Wire Size AWG
Per Local Code
Interconnecting Wire Size AWG
14 / 4
LIMITED WARRANTY5 Years Parts, 7 Years Compressor – Residential & Commercial
Universal Floor/Ceiling
BFLR09HPJ1FA
System Type
HEAT PUMP
 Cooling Capacity - Nominal Btu/h8500
Heating Capacity - Nominal Btu/h9500
SEER2 / EER219 / 13
HSPF2 / COP
9.5 / 3.8
Energy Star®
YES
Air Flow (Min-Max) CFM
257 - 412
Sound Pressure Level (Min - Max) dB(A)
26 - 38
Dehumidification pt/hr
1.7
External Dimensions  (W x H x D) in
34-1/4 x 26-1/4 x 9-1/4
Package Dimension (W x H x D) in
40-1/2 x 30-1/4 x 11-1/4
Weight (Net/Gross) lbs
55.0 / 66.2
Line Set Sized by Indoor Unit (Liquid - Gas) in
1/4 - 3/8
Power Supply
208-230V / 1Ph /  60Hz (Powered by the Outdoor Unit)
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial
Wall Mount
3BRS09HPJ1IA
System Type
HEAT PUMP
SEER2 / EER2
19.5 / 11.3
Cooling Temperature Range °F
0 - 115
Heating Temperature Range °F
-13 - 75
Power Supply
115V / 1PH / 60 HZ
Voltage Range (Min - Max) VAC
103-127
Sound Pressure Level (Min - Max) dB(A)
26 - 41
Dehumidification pt/hr
1.69
External Dimensions  (W x H x D) in
32-7/8 × 10-7/8 × 7-7/8
Package Dimension (W x H x D) in
35-1/4 × 13-5/8 × 10-11/16
Weight (Net/Gross) lbs
19.8 / 24.3
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial
