Daikin 36,000 BTU 15.9 SEER Heat Pump Condenser; Single Zone

Availability:
In-Stock

This product requires compatible indoor unit for functionality.
SEER: 15.9; BtuH Cooling: 34,400; BtuH Heating: 36,000; CFM High: 2,811; Volts: 208/230; Amps Cooling: 19.8; Max. Fuse Size: 20; Liquid Conn.: 1/4"; Suction Fitting: 5/8"; Width: 34-1/4"; Height: 28-15/16"; Depth: 12-5/8"; Wt. Lbs.: 133;


Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

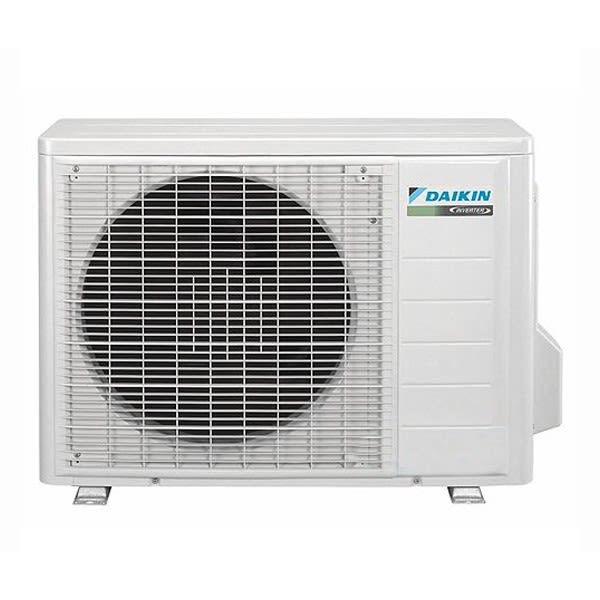

This Daikin Ductless Mini Split Heat Pump Air Conditioner RX36NMVJU Condenser requires an indoor unit to function. Indoor unit must be purchased separately.

  • Heat pump outdoor model
  • Brushless DC Compressor
  • Automatic operation for year around comfort
  • Intelligent eye infrared movement sensor
  • Vertical auto swing air movement
  • Humidity control
  • Auto fan speed
  • Econo mode for controlled energy consumption
  • 24 hour on / off timer
  • Auto restart after power failure
  • Self diagnosis with digital display
  • 208/230V

  This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.

SPECIFICATIONS

General Information
TypeOutdoor Condenser
Product LineNV Series
Operating ModeHeating and Cooling
Number of Zones1
Refrigerant TypeR-410A
Indoor Unit Size(s) 36
Installation LocationOutdoor
Line Set Size1/4" x 5/8"


Performance
Cooling BTU 36000
Low Ambient HeatingNo
Minimum Outdoor Temperature for Heating 5 F
Minimum Outdoor Temperature for Cooling50 F



Dimensions
Product Weight133 Pounds
Shipping Weight143 Pounds
