Re-Verber-Ray, DSS-35B1-C25 Medium-Wave Electric Infrared Space Heater; 8,530 BTU
Medium-Wave DSS-35B1-C25 Electric Infrared Space Heaters
- BTU/h input: 8,530
- Electrical: From 120 Volts
- Watts: 2500
- Typical Mounting Height: 7 to 11 ft
- Series: DSS
- Certifications & Approvals: ETL Listed, Commercial/Industrial, Outdoor Residential, IP55 Water Resistant
- Limited Warranty: 1 year (All Components)
PRODUCT INFO

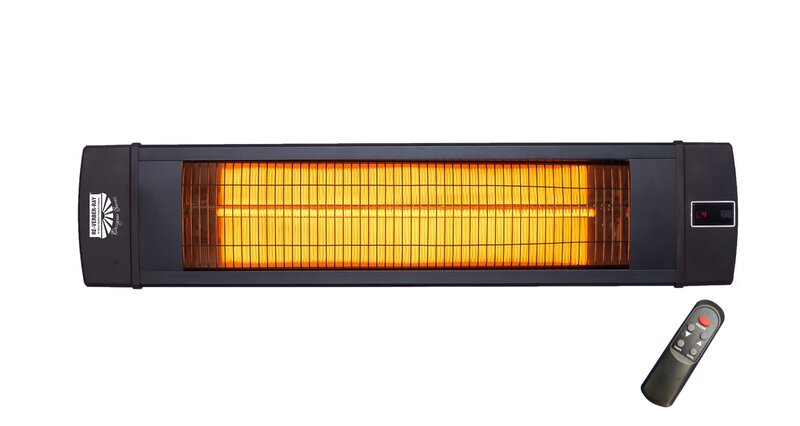

Outdoor approved DSS Series heaters produce medium-wave, instant heat with the use of new technology, carbon lamps encased in a IP55 rated, compact, slim, black enclosure. This heater offers a remote control with timer functionality and four power settings. Operational benefits include a highly efficient energy transfer, even heat distribution, and intense heat output.
Product Features
- BTU/h input: 8,530
- Electrical: From 230 VAC
- Watts: 2500
- Single-phase.
- Series: DSS
Lamp Elements
- Carbon Lamps
- Instant heat-up
- Long lamp life and heat sensitivity
Controls
- Field supplied timer
- Remote supplied
Reflectors
- Custom designed parabolic reflector reflects 99% of rays directly towards the target
Approvals
- ETL Listed
- CE Certified for indoor and outdoor applications
- Commercial/Industrial & Outdoor Residential Approval
Heater Construction
- Rustproof, black-colored body
- IP55 water resistant for use in harsh conditions
- Weatherproof - Heat is not affected by drafts, strong winds, or rain
- High-end quality and compact, aesthetic slim design
Benefits of Heating With Electric Infrared
- Superior Comfort
- Reduced Energy Consumption
- Durability
- Even Heat Distribution
- Outdoor Tested & Approved
- Long Lamp Life Expectancy
SPECIFICATIONS
DSS-35B1-C25 | |||
BTU/h | 8,530 | ||
Electrical | 230 VAC | ||
10.87 Amps | |||
2500 Watts | |||
Phase | Single | ||
Typical Mounting Height | 7 to 11 ft. | ||
Approx. Coverage | 120 Sq. Ft. | ||
Weight (lbs) | 6.6 |
Series | DSS-35B1-C25 | ||

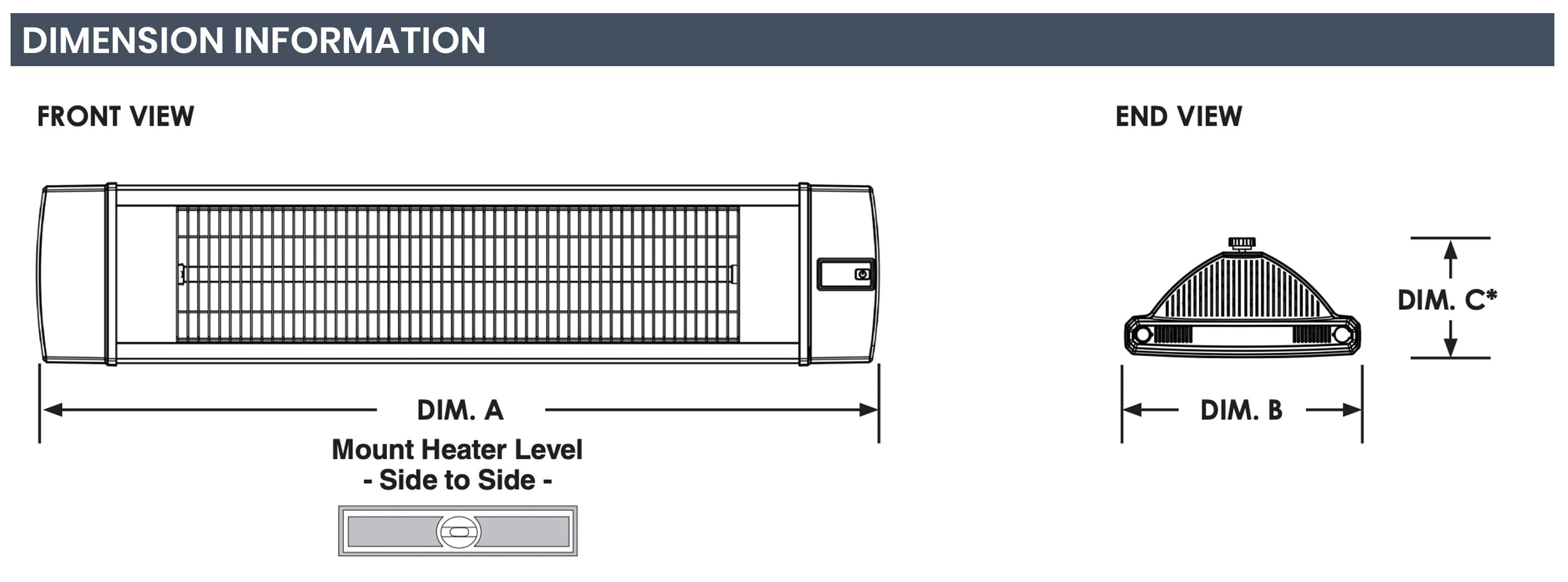

Recommended Mounting Height* [DIM A] | 8’ to 12’ | ||
Recommended Distance Between Heaters [DIM B] | 1 to 11 | ||
Approx. Coverage [C] | 120 Sq. Ft. | ||
Approx. Watts [C] | per Sq. Ft.: 21 | ||
per Sq. M: 0.21 |
Clearances to Combustibles in Inches | |||||||||||
Mounting Angle | Side | End | Top | Below | |||||||
Front | Behind | ||||||||||
0°* | 13 | 13 | 11 | 4 | 50 | ||||||
45° | 37 | 2 | 11 | 5 | 35 | ||||||
* Supplied bracket to be used for 0° mounting only.
