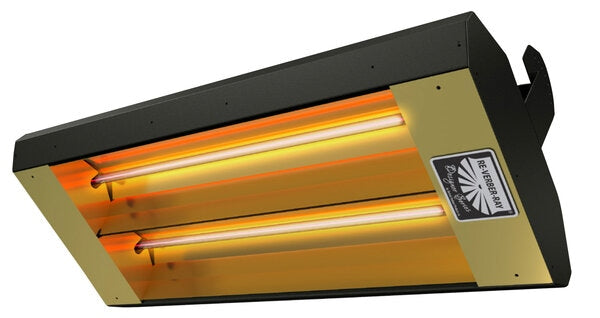

Re-Verber-Ray, MW2-46-3-01 Medium-Wave Electric Infrared Heater; 30,709 BTU
Medium-Wave Electric Infrared Heater
- BTU/h input: 30,709
- Electrical: 575 Volts (See Options Buttom Below)
- Watts: 9,000
- Series: MW2
-
Lamp Quantity: 3
- Housing: Black Powder-coated Aluminized Steel or Stainless Steel for Added Durability and Corrosion Resistance (See Options Buttom Below)
- Lamp Elements: Coiled Tungsten Filament in a Sealed Quartz Tube w/ Porcelain End Caps
- Certifications & Approvals: ETL Listed Indoor & Outdoor Commercial, and Outdoor Residential
- Limited Warranty: 1 year (All Components)
PRODUCT INFO
The MW2 Series features a sleek, compact enclosure capable of housing single, dual or triple lamp options that produce a wide, symmetrical heat pattern. With an assortment of casings, lamp sizes, voltages, and wattages, this heater can easily be customized to provide a practical solution for your needs.
Product Features
- BTU/h input: 30,709
- Electrical: 575 VAC
- Watts: 9,000
- Series: MW2
- Lamp Quantity: 3
Lamp Elements
- Coiled nichrome filament housed within a sealed quartz tubing.
- Stainless Steel end caps.
- Instantaneous heat-up & cool-down.
- Opaque quartz.
Controls
- Field supplied.
Reflectors
- Gold colored, anodized aluminum reflectors reduces visible light glare.
- Wide, symmetric design.
Approvals
- ETL Listed for indoor and outdoor commercial, outdoor residential
- CSA 22.2 #46 - M1988.
- UL 2021, 1997
Benefits of Heating With Electric Infrared
- Superior Comfort
- Reduced Energy Consumption
- Durability
- Even Heat Distribution
- Outdoor Tested & Approved
- Long Lamp Life Expectancy
SPECIFICATIONS
| MW2-46 | |||
| BTU/h | 30,709 | ||
| Electrical | 575 VAC | ||
| Control Amps | 15.6 Amps | ||
| Watts | 9,000 | ||
| Overall Unit Length Inches | 46 in. | ||
| Weight (lbs) | 40 |
| Series | MW2-46 | ||
| Lamp Quantity | 3 | ||

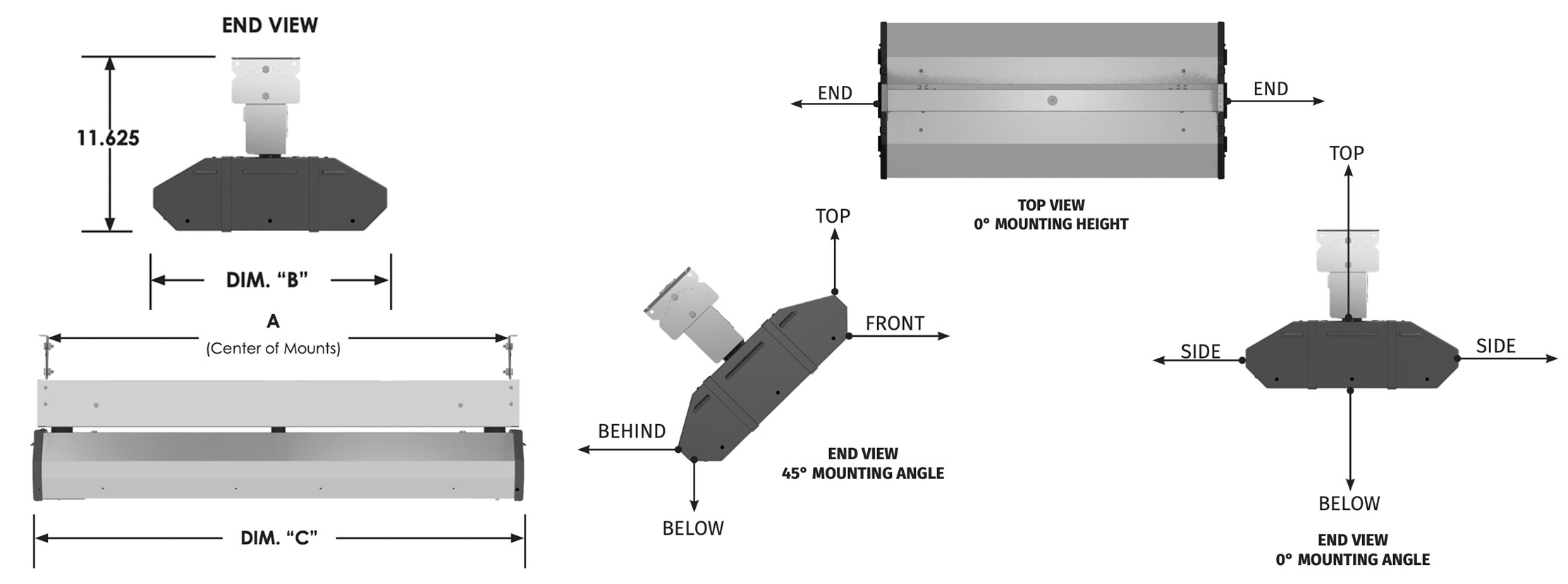

| Recommended Mounting Height* [DIM A] | 10 to 15 ft. | ||
| Recommended Distance Between Heaters [DIM B] | 6 to 15 ft. | ||
| Approx. Coverage [C] | 500 sq. ft. | ||
| Approx. Watts [C] | per Sq. Ft.: 6 to 15 ft. | ||
| per Sq. M: 1.1 to 1.7 |
| Clearances to Combustibles in Inches | |||||||||||
| Mounting Angle | Side | End | Top | Below | |||||||
| Front | Behind | ||||||||||
| 0° | 28 | 28 | 30 | 9 | 98 | ||||||
| 45° | 988 | 4 | 30 | 10 | 98 | ||||||
