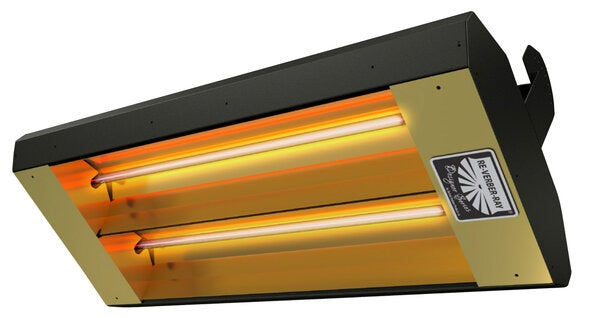

Re-Verber-Ray, MW2-46-1-01 Medium-Wave Electric Infrared Heater; 10,236 BTU

Availability:
In-Stock

Medium-Wave Electric Infrared Heater

  • BTU/h input: 10,236
  • Electrical: 575 Volts
  • Watts: 3,000
  • Series: MW2
  • Lamp Quantity: 1
  • Housing: Black Powder-coated Aluminized Steel or Stainless Steel for Added Durability and Corrosion Resistance (See Options Buttom Below)
  • Lamp Elements: Coiled Tungsten Filament in a Sealed Quartz Tube w/ Porcelain End Caps
  • Certifications & Approvals: ETL Listed Indoor & Outdoor Commercial, and Outdoor Residential
  • Limited Warranty: 1 year (All Components)
Housing
Voltage

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
MW2-46B1-H30
ID:
HE202-6003

PRODUCT INFO

The MW2 Series features a sleek, compact enclosure capable of housing single, dual or triple lamp options that produce a wide, symmetrical heat pattern. With an assortment of casings, lamp sizes, voltages, and wattages, this heater can easily be customized to provide a practical solution for your needs.

Product Features

  • BTU/h input: 10,236
  • Electrical: 575 VAC
  • Watts: 3,000
  • Series: MW2
  • Lamp Quantity: 1

Lamp Elements

  • Coiled nichrome filament housed within a sealed quartz tubing.
  • Stainless Steel end caps.
  • Instantaneous heat-up & cool-down.
  • Opaque quartz.

Controls

  • Field supplied.

Reflectors

  • Gold colored, anodized aluminum reflectors reduces visible light glare.
  • Wide, symmetric design.

Approvals

  • ETL Listed for indoor and outdoor commercial, outdoor residential
  • CSA 22.2 #46 - M1988.
  • UL 2021, 1997

Benefits of Heating With Electric Infrared

  • Superior Comfort
  • Reduced Energy Consumption
  • Durability
  • Even Heat Distribution
  • Outdoor Tested & Approved
  • Long Lamp Life Expectancy

SPECIFICATIONS


MW2-46


BTU/h
10,236

Electrical
575 VAC

Control Amps
5.2 Amps

Watts
3,000

Overall Unit Length Inches
46 in.

Weight (lbs)
24



Series
MW2-46

Lamp Quantity
1

Recommended Mounting Height* [DIM A]
8 to 10 ft

Recommended Distance Between
 Heaters [DIM B]

4 to 11 ft.

Approx. Coverage [C]
300 sq. ft.

Approx. Watts [C]
per Sq. Ft.: 7 to 10


per Sq. M: 0.7 to 0.9
Clearances to Combustibles in Inches

Mounting Angle
Side
End
Top
Below


Front
Behind




9
9
6
6
42







45°
29
4
6
10
29
