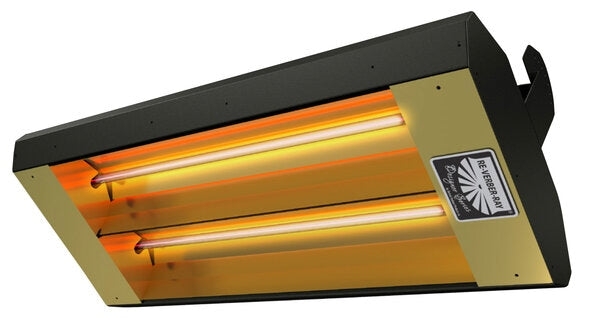

Re-Verber-Ray, MW2-46-1 Medium-Wave Electric Infrared Heater; 6,824 BTU
Medium-Wave Electric Infrared Heater
- BTU/h input: 6,824
- Electrical: From 120 to 480 Volts (See Options Buttom Below)
- Watts: 2,000
- Series: MW2
-
Lamp Quantity: 1
- Housing: Black Powder-coated Aluminized Steel or Stainless Steel for Added Durability and Corrosion Resistance (See Options Buttom Below)
- Lamp Elements: Coiled Tungsten Filament in a Sealed Quartz Tube w/ Porcelain End Caps
- Certifications & Approvals: ETL Listed Indoor & Outdoor Commercial, and Outdoor Residential
- Limited Warranty: 1 year (All Components)
PRODUCT INFO
The MW2 Series features a sleek, compact enclosure capable of housing single, dual or triple lamp options that produce a wide, symmetrical heat pattern. With an assortment of casings, lamp sizes, voltages, and wattages, this heater can easily be customized to provide a practical solution for your needs.
Product Features
- BTU/h input: 6,824
- Electrical: From 120 to 480 VAC
- Watts: 2,000
- Series: MW2
- Lamp Quantity: 1
Lamp Elements
- Coiled nichrome filament housed within a sealed quartz tubing.
- Stainless Steel end caps.
- Instantaneous heat-up & cool-down.
- Opaque quartz.
Controls
- Field supplied.
Reflectors
- Gold colored, anodized aluminum reflectors reduces visible light glare.
- Wide, symmetric design.
Approvals
- ETL Listed for indoor and outdoor commercial, outdoor residential
- CSA 22.2 #46 - M1988.
- UL 2021, 1997
Benefits of Heating With Electric Infrared
- Superior Comfort
- Reduced Energy Consumption
- Durability
- Even Heat Distribution
- Outdoor Tested & Approved
- Long Lamp Life Expectancy
SPECIFICATIONS
| MW2-24 | |||
| BTU/h | 6,824 | ||
| Electrical | 120 to 480 VAC | ||
| Control Amps | 4.2 to 16.6 Amps | ||
| Watts | 2,000 | ||
| Overall Unit Length Inches | 46 in. | ||
| Weight (lbs) | 24 |
| Series | MW2-46 | ||
| Lamp Quantity | 1 | ||

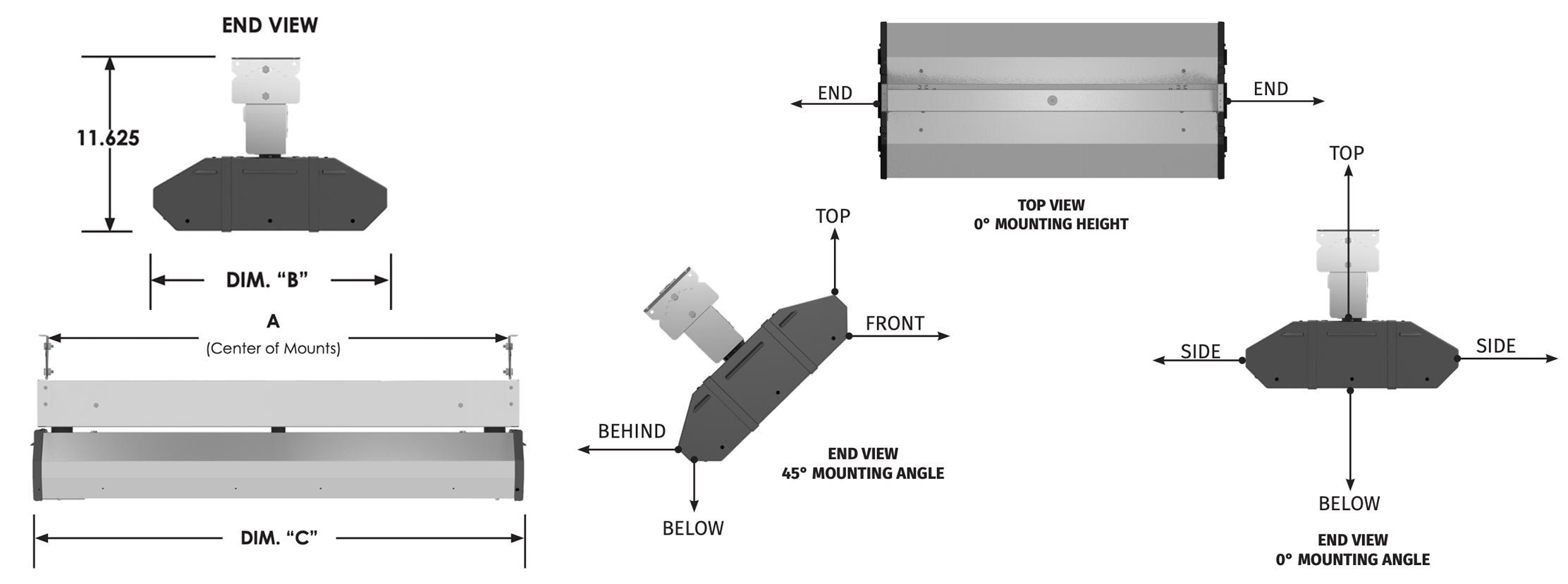

| Recommended Mounting Height* [DIM A] | 8 to 10 ft. | ||
| Recommended Distance Between Heaters [DIM B] | 4 to 11 ft. | ||
| Approx. Coverage [C] | 300 sq. ft. | ||
| Approx. Watts [C] | per Sq. Ft: 7 to 10 | ||
| per Sq. M: 0.7 to 0.9 |
| Clearances to Combustibles in Inches | |||||||||||
| Mounting Angle | Side | End | Top | Below | |||||||
| Front | Behind | ||||||||||
| 0° | 9 | 9 | 6 | 6 | 42 | ||||||
| 45° | 29 | 4 | 6 | 10 | 29 | ||||||
