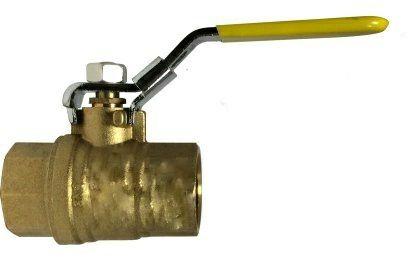

1-1/4" FIP X FIP Brass Full Port Ball Valve 600 WOG
1-1/4" FIP X FIP Brass Full Port Ball Valve 600 WOG
Availability:
In-Stock
Brass Full Port Ball Valve 600 WOG, P420-1450 replaces the following industrial numbers: 01728170L; 40024-20; 47865K26; 7481220209800; 757T06; 759T06; BV2103-J; BV2103J; HP-Q104 1-1/4
$40.78 USD
SKU:
P420-1450
ID:
P420-1450
Categories:
PRODUCT INFO
- Suitable for full range of liquids and gases
- Minimal pressure drop due to large full size ports
- Bottom loaded, pressure retaining stem
- Pressure rated for 1/4"-2" at 600psi (42 bars) and
- 2-1/2"-4" at 400 psi WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin PTFE stem packing seal, thrust washer and seats
- Yellow vinyl insulator on heavy duty plated carbon steel handles
- Fast 1/4 turn open or close operation
- Not Lead Free
- Low operating torque
- Adjustable stem packing gland
- Maximum operating temperature: 302 F (150 C)
- Minimum operating temperature: -22 F (-30 C)
- Each valve individually tested
- Forged Brass - for more strength
- Threaded ends to ANSI B1.20.1
- Hard chromium plated solid ball
- Bottom entry, blow-out proof stem
- Deeper threads - for better connections
