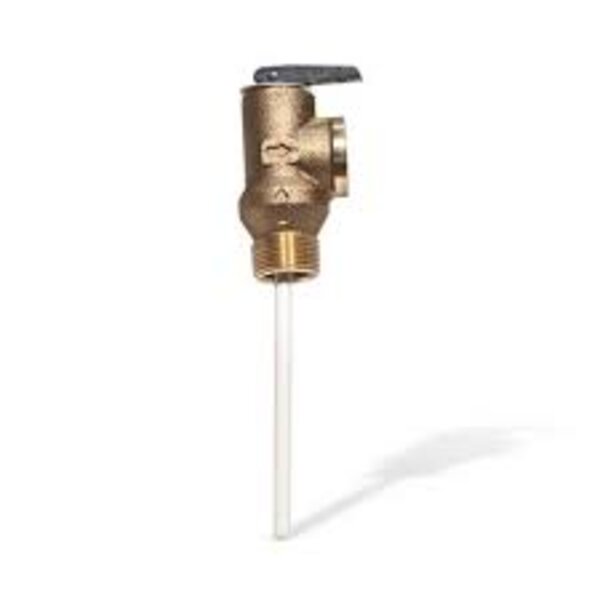

Watts 0066100 3/4" Temperature and Pressure Relief Valve
- This temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
- It features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever
- Model 100XL-8 is also available with 8 inch (200mm) extension thermostat
- Series 100XL is ASME rated and CSA listed
- Temperature relief is 210 degree F (99 degree C), Pressure relief range is 75 to 150psi (5.2 to 10.3 bar)
- Standard pressure settings are 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
$45.15 USD
SPECIFICATIONS
Conn. Size | 3/4" | |
Length | 4" | |
Model # | 100XL-150 3/4 | |
Outlet Conn. | 3/4" | |
PSI | 150 | |
Shipping Weight | 0.50 | |
Shipping Weight | 2.60 | |
Shipping Length | 7.80 | |
Shipping Height | 1.40 |
