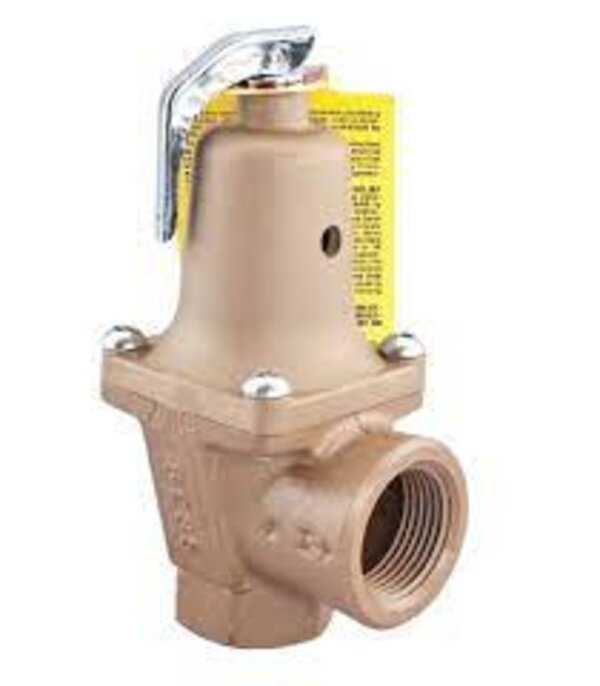

Watts 382008 3/4" Iron Boiler Pressure Relief Valve 30 PSI For Protection of Hot Water Heating Boilers
- This 3/4 inch boiler pressure relief valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment
- It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever
- It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat
- It is designed for emergency safety relief, not as an operating control
- The pressure relief is set at 30 PSI (2068 kPa) with corresponding high pressure ratings up to 925,000 BTU/hr
$293.00 USD
SKU:
382008
ID:
HR100-1S9-0097
Categories:
SPECIFICATIONS
| Body Type | Iron — Bronze Outlet | |
| BtuH | 925,000 | |
| Conn. Size | 3/4" | |
| Inlet Conn. | 3/4" | |
| Model # | 740-030 3/4 | |
| Outlet Conn. | 1" | |
| Pressure Setting | 30* | |
| Shipping Weight | 1.80 | |
| Shipping Weight | 3.30 | |
| Shipping Length | 5.70 | |
| Shipping Height | 3.20 |
