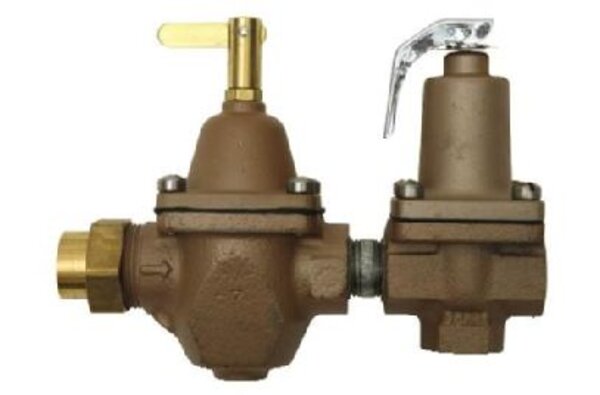

Watts 388805 1/2" High Capacity Water Feed Regulator For Boilers
- This dual control regulator and relief valve, 1/2 inch, is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times
- It also provides make-up water to the system in the event of system leaks
- It consists of an iron and bronze body construction with NPT threaded inlet and outlet connections, an attached iron body, a tight seating check valve, purge lever for manual purging, diaphragm relief valve, and a stainless steel strainer
- It has high capacity performance and a simplified servicing design
- It is suitable for use in the boiler feed lines of hydronic heating systems
- The maximum pressure is 100 PSI (69 BAR)
$348.00 USD
SKU:
388805
ID:
HR100-1S9-0109
Categories:
SPECIFICATIONS
| Conn. Size | 1/2" Threaded | |
| Inlet Conn. | Female Threaded | |
| Model # | T1450F | |
| Outlet Pressure Preset PSI | 30 | |
| Outlet Pressure Range PSI | 10-25 | |
| Shipping Weight | 3.20 | |
| Shipping Weight | 5.50 | |
| Shipping Length | 7.40 | |
| Shipping Height | 2.50 |
