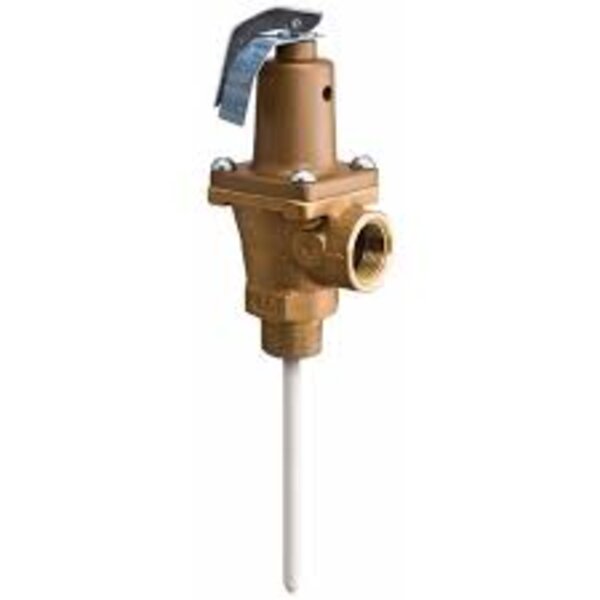

Watts 556016 3/4" M x 3/4" F Lead Free Automatic Reseating Temperature and Pressure Relief Valve 8" Thermostat 150 PSI 210 F 1437600 BTU/HR
- This 3/4 inch lead free automatic reseating temperature and pressure relief valve with a 5 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters
- It features lead free construction with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever
- The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 150 PSI.
$458.00 USD
SPECIFICATIONS
| Conn. Size | 3/4" | |
| Inlet Conn. | 5" | |
| Model # | LF40XL-150210 3/4 | |
| PSI | 150 | |
| Shipping Weight | 1.35 | |
| Shipping Weight | 2.90 | |
| Shipping Length | 11.30 | |
| Shipping Height | 2.20 |
