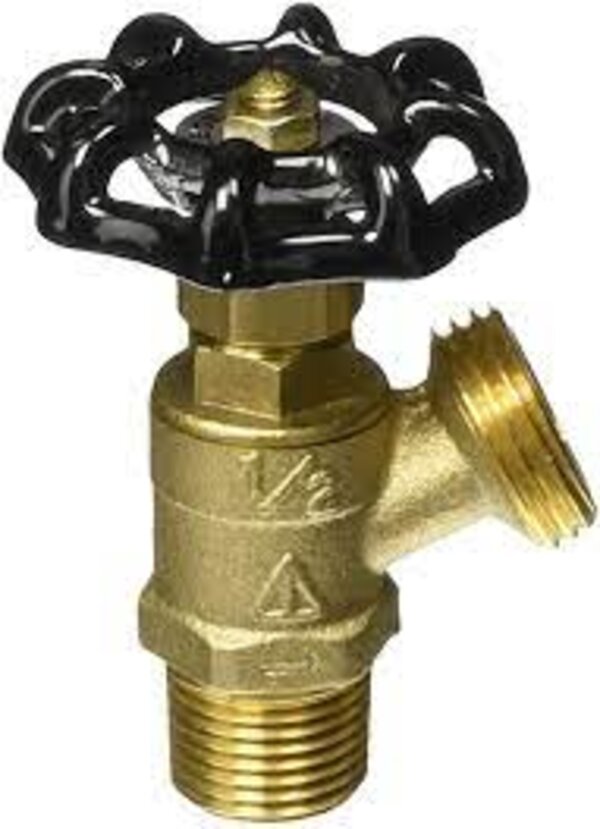

Watts 820901 1/2" Boiler Drain Shutoff
- This 1/2 inch angle pattern brass boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems
- It provides positive shutoff for boiler drain or sill cock applications
- This shutoff consists of a brass body construction and 1/2 inch dual connection for either solder or male IPS and 3/4 inch hose thread connection, Teflon stem packing, and cast iron handwheel
- The maximum pressure is 200 PSI (14 BAR) WOG and maximum temperature is 180 degrees F (82 degrees C)
$24.15 USD
SPECIFICATIONS
| Conn. Size | 1/2" | |
| Inlet Conn. | Male Threaded | |
| Max. Pressure | 200 psi | |
| Model # | BD-1C | |
| Outlet Conn. | Male Threaded | |
| Size | 1/2" | |
| Temp. °F | 180° F | |
| Shipping Weight | 0.45 | |
| Shipping Weight | 1.97 | |
| Shipping Length | 2.20 | |
| Shipping Height | 1.97 |
