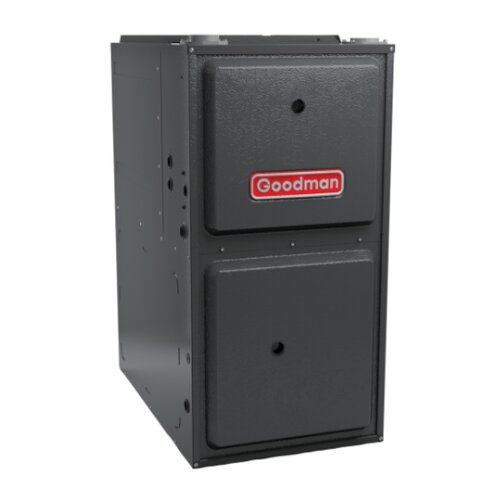

Goodman GMES92; 92% AFUE; 80,000 BTU; Single Stage Multi-Speed Gas Furnace

Availability:
In-Stock
High Efficiency Upflow/Horizontal Blower with 1,200 Max CFM. Natural Gas with Low NOx Emissions. 17.5" Cabinet Width
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
GMES920803BN
ID:
HE201-2051

PRODUCT INFO

The GMES92 multi-speed furnace uses a pair of steel heat exchangers to convert 92% of the energy used into comfort. Instead of a standard multi-speed blower motor, the GMES92 utilizes an ECM motor, which uses less power and provides smarter circulation.

Advanced Heat Exchanger Design

The GMES92 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer and wrinkle-bend technology for extraordinary durability.

Secondary Heat Exchanger

The GMES92 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer and wrinkle-bend technology for extraordinary durability.

Multi-Speed ECM Motor

The GMES92's energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.

Quiet Comfort

Goodman takes great pride in producing equipment that doesn't disrupt your home. The blower and gas valve of the GMES92 were selected for their incredibly low sound levels.

Secure Cabinet

All GMES92 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.

Self-Diagnostic Control Board

The GMES92 continuously monitors the system to ensure reliable operation, stores the last diagnostic codes in memory, and a flashing LED indicates condition for quick troubleshooting.

Extended Warranty

Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.

SPECIFICATIONS



General Information
TypeGas Furnace
Product LineGMES92
Fuel Type Natural Gas
Vent TypeDirect Vent
Modulating/Staging Single Stage
Blower MotorECM Multi-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051590595


Performance
AFUE 96 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output73680 BTU
Maximum Air Flow1200 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Certifications
Country of OriginUnited States
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number203400957



Dimensions
Flue Connection Size2 or 3 Inches
Cabinet Width17 1/2 Inches
Product Height34 1/2 Inches
Product Width17 1/2 Inches
Product Depth29 Inches
Product Weight117 Pounds
Shipping Weight117 Pounds
