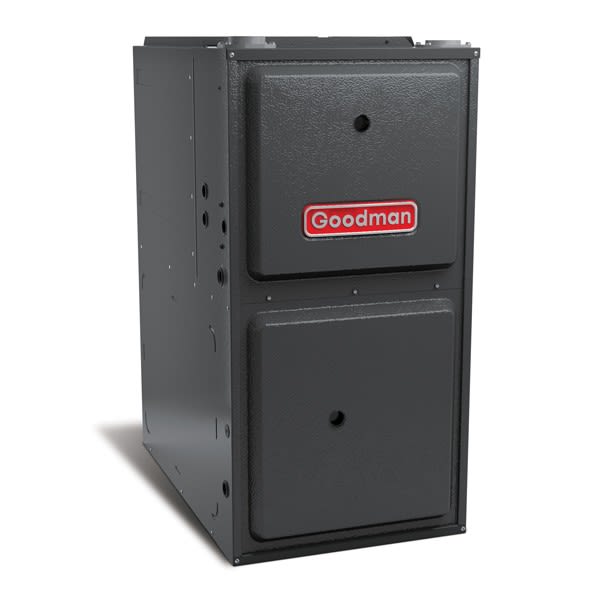

Goodman GMSS96; 96% AFUE; 40,000 BTU; Single Stage Multi Speed Gas Furnace

Availability:
In-Stock
AFUE: 96.0%; Configuration: Upflow/Horizontal; BtuH Input: 40,000; BtuH Output: 38,400; Nom. CFM: 1,200; CFM @ 0.5" ESP: 1,016; Min. Circuit Amps: 9.3; Vent Size: 2"-3"; Motor Type: PSC; Width: 14"; Height: 34-1/2"; Depth: 28-3/4"; Wt. Lbs.: 106; Stages: Single-Stage; LoNox: Yes
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
GMSS960403AN
ID:
HE201-3000

PRODUCT INFO

Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GMSS96 multi-speed furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a single-stage furnace. It is equipped with a four-speed blower motor, which provides your home with comfortable circulation through a wide variety of conditions. The GMSS960403AN was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. When it comes to high efficiency heating from a single stage furnace, Goodman's GMSS96 sets the standard..

Advanced Heat Exchanger Design
The GMSS96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer with wrinkle bent tubes that enhance the heat exchanger's dependability and longevity.

Secondary Heat Exchanger
This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger. This secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.

Quiet Comfort
The blower and gas valve of the GMSS960403AN were selected for their incredibly low sound levels.

Venting Options
The GMSS960403AN offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air provided from within your home.

Secure Cabinet
All GMSS96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.

Easy Integration
The GMSS960403AN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.

SPECIFICATIONS

General Information
TypeGas Furnace
Product LineGMSS96
Fuel Type Natural Gas
Vent Type
Direct Vent
Modulating/Staging Single Stage
Blower MotorPSC Multi-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051561076

Performance
AFUE 96 %
Heating BTU40000
High Fire Input40000 BTU
High Fire Output38400 BTU
Maximum Air Flow1200 CFM
Low NOx EmissionsYes

Dimensions
Flue Connection Size2  Inches
Cabinet Width14 Inches
Product Height34 1/2 Inches
Product Width14 Inches
Product Depth28 3/4 Inches
Product Weight111 Pounds
Shipping Weight111 Pounds

Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number10515334
