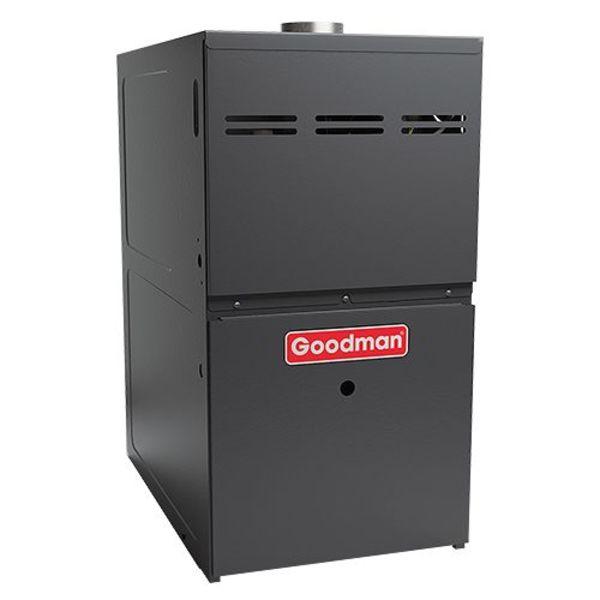

Goodman GMVC80; 80% AFUE; 80,000 BTU; Two Stage Variable Speed Gas Furnace

Availability:
Out-Stock
Variable Speed Upflow/Horizontal Blower with 2,000 Max CFM. Natural Gas. 24.5" Cabinet Width.
SKU:
GMVC80805DN
ID:
HE201-1043

PRODUCT INFO

The GMVC80 is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GMVC80 was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GMVC80.

Advanced Heat Exchanger Design

The GCVC80 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Variable Speed ECM Motor

The GMVC80 features an efficient and quiet variable speed motor that ramps up or down according to the heating or cooling demand, providing accurate temperature control and keeping money spent on utility bills in your pocket.

Quiet Comfort

The blower and gas valve of the GMVC80 were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.

Secure Cabinet

All GMVC80 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.

ComfortBridge Technology

This furnace is equipped with Goodman's ComfortBridge technology that continuously monitors system performance for customized indoor comfort.

Extended Warranty

Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.

SPECIFICATIONS

General Information
TypeGas Furnace
Product LineGMVC80
Fuel TypeNatural Gas
Vent TypeChimney Vent
Modulating/StagingTwo Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051567429


Performance
AFUE80 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output64000 BTU
Low Fire Input56000 BTU
Low Fire Output44800 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsNo


Dimensions
Flue Connection Size4 Inches
Cabinet Width24 1/2 Inches
Product Height33 1/2 Inches
Product Width24 1/2 Inches
Product Depth28 Inches
Product Weight129 Pounds
Shipping Weight129 Pounds


Certifications
Country of OriginUnited States
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
AHRI Reference Number202327718
