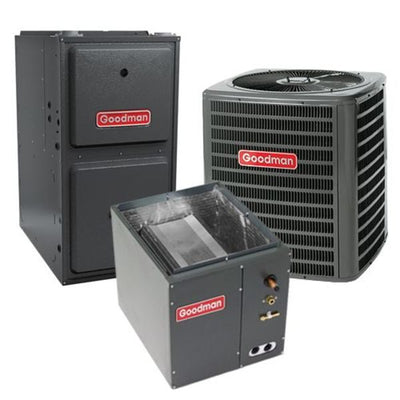

Goodman 4 Ton Cooling 14 SEER; 100k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

Product Includes 3 items:
(1) Goodman 96% AFUE 100,000 BTU Variable Speed Upflow/Horizontal Gas Furnace (GMVC961005CN);
(1) Goodman 4 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140481);
(1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
Non-Bleed Air Conditioner TXV Kit is sold separately!

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

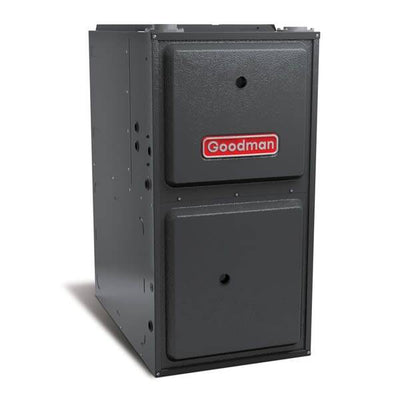

  Goodman GMVC961005CN Gas Furnace Heater

Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GMVC96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman's superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren't being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman's highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GMVC961005CN utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GMEC96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GMVC96.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

  Goodman GSX140481 Air Conditioner Condenser
You can count on The Goodman GSX140481 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

The Goodman CAPF4961C6 Air Conditioner Evaporator Cased Coil
The CAPF4961C6 is a cased A coil for use in upflow or downflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CAPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.

All-Aluminum Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Secure Cabinet
A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.

Condensate Management
The CAPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operationa

Multi-Refrigerant Compatibility
R-22 refrigerant is no longer in production, but many older systems still use it. The CAPF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.

Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
Coil Width21 Inches
ConfigurationUpflow
DOE Regional ComplianceNationwide
Performance
AFUE96 %
Capacity4.0 Tons
Cooling Capacity46000 BTU
Nominal Cooling Capacity
48000 BTU
Heating BTU100000
SEER14.0
EER11.7
Maximum Air Flow1550 CFM
Dimensions
Product Weight436 Pounds
Shipping Weight458 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number201260975



  Goodman GSX140481 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)48,000
SEER / EER14/11.7
Decibels74
Compressor
RLA19.9
LRA109
TypeScroll
Condenser Fan Motor
Horsepower1/4
FLA1.3



Goodman GMVC961005CN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051560994
Performance
AFUE 96 %
Heating BTU100000
High Fire Input100000 BTU
High Fire Output96000 BTU
Low Fire Input70000 BTU
Low Fire Output67200 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CAPF4961C6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051541016
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
