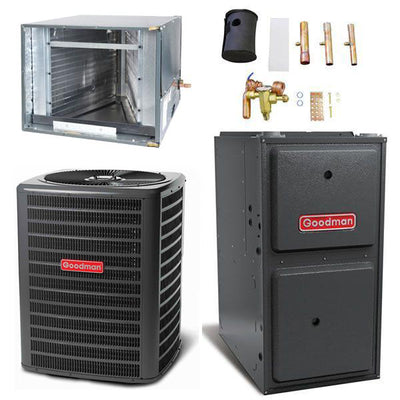

Goodman 3.5 Ton Cooling 14.5 SEER; 120k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

Product Includes 4 items:
(1) Goodman 96% AFUE 120,000 BTU Variable Speed Upflow/Horizontal Gas Furnace (GMVC961205DN);
(1) Goodman 3.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140431);
1) Goodman 4 to 5 Ton 24.5 in. High Air Conditioner Horizontal Cased Coil (CHPF4860D6);
(1) Goodman 3.5 to 5 Ton Air Conditioner TXV Kit R410A Refrigerant (TX5N4)

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

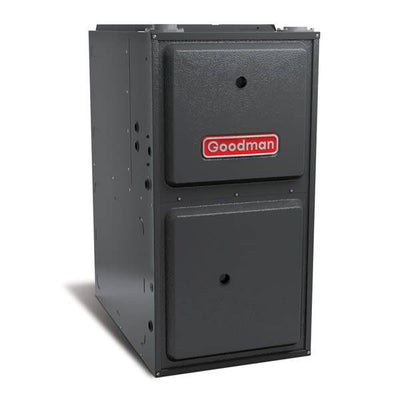

  Goodman GMVC961205DN Gas Furnace Heater
The Goodman GMVC96 High-Efficiency Gas Furnace with modulating gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GMVC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMVC961205DN Gas Furnace Heaters.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

  Goodman GSX140431 Air Conditioner Condenser
You can count on The Goodman GSX140431 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

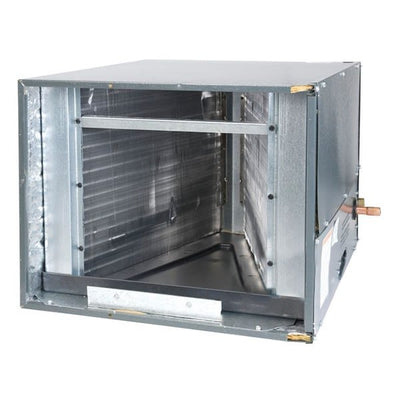

The Goodman CHPF4860D6 Air Conditioner Evaporator Cased Coil
The CHPF4860D6 is a cased A coil for use in upflow or horizontal. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CHPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.

All-Aluminum Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Secure Cabinet
A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.

Condensate Management
The CHPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operationa

Multi-Refrigerant Compatibility
R-22 refrigerant is no longer in production, but many older systems still use it. The CHPF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.

Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
Coil Width21.5 Inches
ConfigurationHorizontal
DOE Regional ComplianceNationwide
Performance
AFUE96 %
Capacity3.5 Tons
Cooling Capacity38000 BTU
Nominal Cooling Capacity
42000 BTU
Heating BTU120000
SEER14.5
EER12.2
Maximum Air Flow1425 CFM
Dimensions
Product Weight422 Pounds
Shipping Weight442 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number8082449



  Goodman GSX140431 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)42,000
SEER / EER14 /12.2
Decibels73
Compressor
RLA16.7
LRA79
Condenser Fan Motor
Horsepower1/6
FLA0.95



Goodman TX5N4 Air Conditioner TXV Kit
General Information
TypeTXV Kit
Product LineTX
Refrigerant TypeR-410A
UPC
193031106206


Dimensions
Product Weight1 Pound
Shipping Weight2 Pounds
Goodman GMVC961205DN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051561014
Performance
AFUE 96 %
Heating BTU120000
High Fire Input120000 BTU
High Fire Output115200 BTU
Low Fire Input84000 BTU
Low Fire Output80640 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CHPF4860D6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCHPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationHorizontal
Installation AvailableYes
UPC663051541160
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
