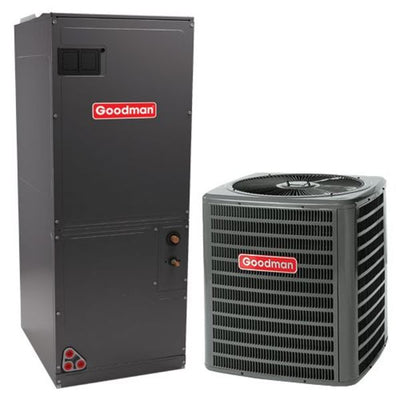

Goodman 3.5 Ton 15 SEER Air Conditioner Variable Speed Split System (Cooling only)

Availability:
Out-Stock

Product Includes 2 items:
(1) Goodman 3 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140371);
(1) Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC37D14)

PRODUCT INFO

Energy-Efficient Scroll Compressor - Inside of the Goodman GSX140371 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140371 air conditioners simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Goodman AVPTC AVPTC37D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites:

All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

But best of all, this Goodman AVPTC AVPTC37D14 Multi speed, Multi position Air Handler Electric Furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.

SPECIFICATIONS

General Information
Operating ModeCooling
ConfigurationMulti-Position
Compressor StagesSingle
DOE Regional Compliance Nationwide
Installation AvailableYes


Performance
Capacity3.5 Tons
Cooling Capacity34600 BTU
Nominal Cooling Capacity42000 BTU
SEER15.0
EER 12.5
Maximum Air Flow1145 CFM



Dimensions
Product Weight317 Pounds
Shipping Weight (total)335 Pounds



Certifications
ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number8996144
Country of OriginUnited States
