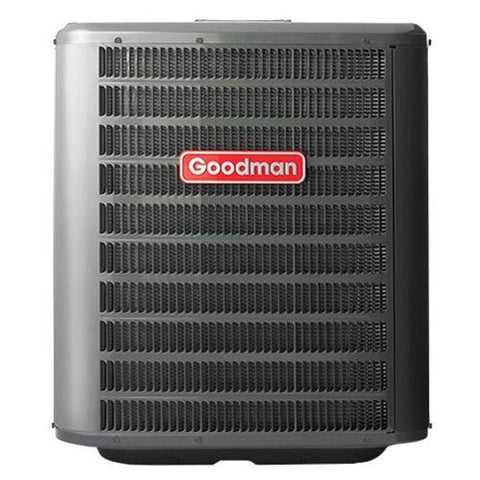

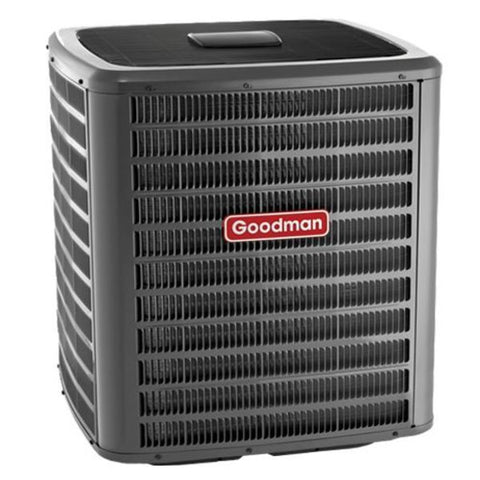

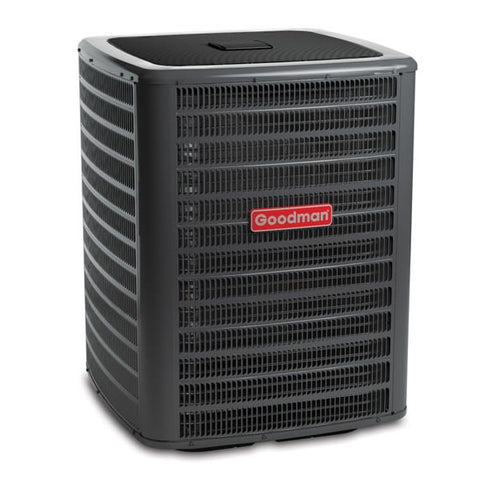

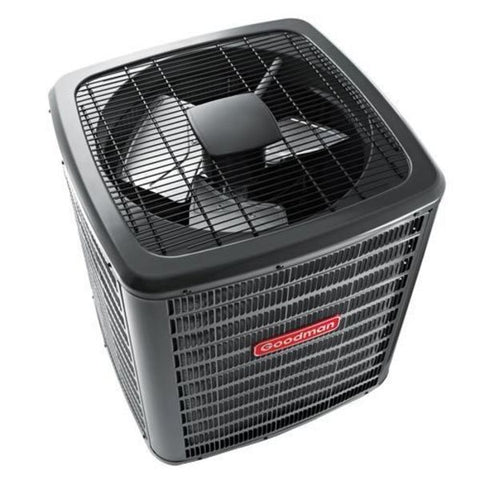

Goodman 4 Ton Heat Pump Condenser; 18 SEER; Two-Stage; W/R410A Refrigerant
SEER: 18; EER: 13.0; Nom. Tons: 4; BtuH Cooling: 49,500; BtuH Heating Input: 51,000; Volts: 208/230; Phase: Single; Motor Type: ECM; HSPF: 9.5; COP: 4.76; Min. Circuit Amps: 28.3; Max. Fuse Size: 45; Liquid Conn.: 3/8"; Suction Fitting: 1-1/8" *; Refrigerant: R410A; Width: 35-1/2"; Height: 40"; Depth: 35-1/2"; Wt. Lbs.: 316
SKU:
GSZC180481
ID:
HE102-3004
PRODUCT INFO
Standard Features
- High-efficiency two-stage scroll compressor
- High-density foam compressor sound blanket
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
- Expanded ComfortAlert diagnostics built in
- Set-up capable with two low-voltage wires to outdoor unit
- Diagnostic indicator lights and storage of six fault codes
- Color-coded terminal strip for non-communicating set-up
- SmartShift® technology with short-cycle protection to ensure quiet, reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed transformer
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- Factory-installed coil and ambient temperature sensors
- High- and low-pressure switches
- Quiet ECM-style condenser fan motor
- AHRI Certified; ETL Listed
Cabinet Features
- Goodman® brand sound control top design
- Heavy-gauge galvanized-steel cabinet
- Appliance-quality powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Baked-on powder paint finish
- Top and side maintenance access
- When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
SPECIFICATIONS
| Capacities | |
| Nominal Cooling (BTU/h) | 49,500 |
| Heating (BTU/h) | 51,000 |
| Decibels | 75 |
| Compressor | |
| RLA | 20.4 |
| LRA | 122.1 |
| Condenser Fan Motor | |
| Horsepower (RPM) | 1/3 |
| FLA | 2.8 |
| Refrigeration System | |
| Refrigerant Line Size | |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 1-1/8" |
| Refrigerant Connection Size | |
| Liquid Valve Size (O.D.) | 3/8" |
| Suction Valve Size (O.D.) | 1-1/8" |
| Valve Type | Sweat |
| Refrigerant Charge | 308 |
| Expansion Device | TXV |
| Superheat at Service Valve | 7-9°F |
| Subcooling at Service Valve | |
| High Stage | 8-10°F |
| Low Stage | 5-7°F |
| Ship Weight (lbs) | 336 |
