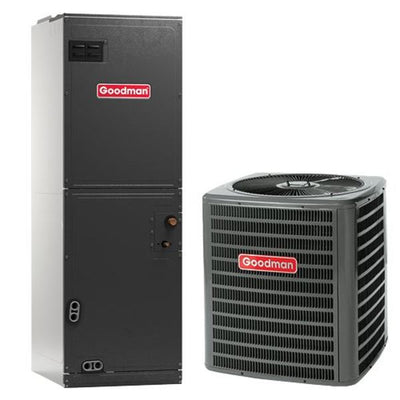

Goodman 3 Ton 14.5 SEER Air Conditioner Split System (Cooling only)
Product Includes 2 items:
(1) Goodman 3 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140371);
(1) Goodman 3 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT39C14)
PRODUCT INFO
The Goodman GSX14 GSX140371 Air Conditioner Condenser
Energy-Efficient Scroll Compressor- Inside of the Goodman GSX140371 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140371 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Goodman ASPT39C14 Air Conditioner Air Handler
The Goodman ASPT39C14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT39C14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT39C14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.
SPECIFICATIONS
General Information | |
Operating Mode | Cooling |
Configuration | Multi-Position |
Compressor Stages | Single |
DOE Regional Compliance | North and Southeast |
Performance | |
Capacity | 3.0 Tons |
Cooling Capacity | 34200 BTU |
Nominal Cooling Capacity | 36000 BTU |
SEER | 14.5 |
EER | 12.2 |
Maximum Air Flow | 1220 CFM |
Dimensions | |
Product Weight | 280 Pounds |
Shipping Weight (total) | 298 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
AHRI Reference Number | 201830183 |
Country of Origin | United States |
