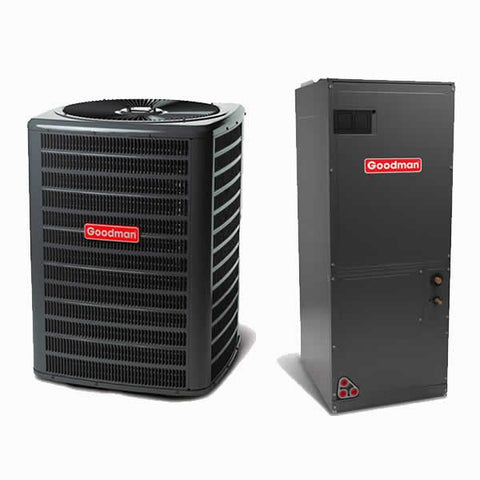

Goodman 5 Ton 14 SEER Heat Pump Split System (Heat/Cool) << Shipping in 48 States >>
Product Includes 2 items:
(1) Goodman 5 Ton 14 SEER Heat Pump Air Conditioner Condenser (GSZ140601)
(1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT61D14)
SKU:
GSZ140601; ASPT61D14
ID:
HE102-1006; HE180-1012
PRODUCT INFO

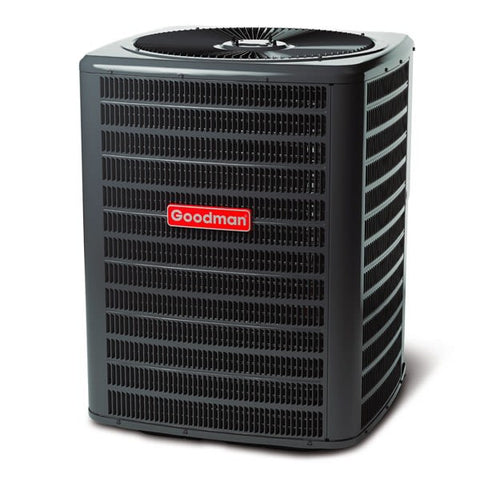

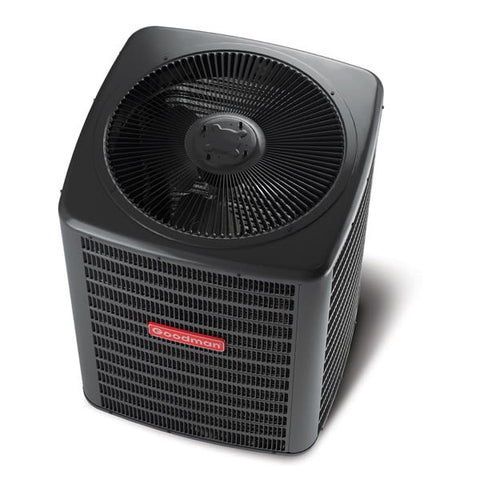

Goodman GSZ140601 Heat Pump Air Conditioner Condenser
- Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.
- Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.
- Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements.
- Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
- Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.

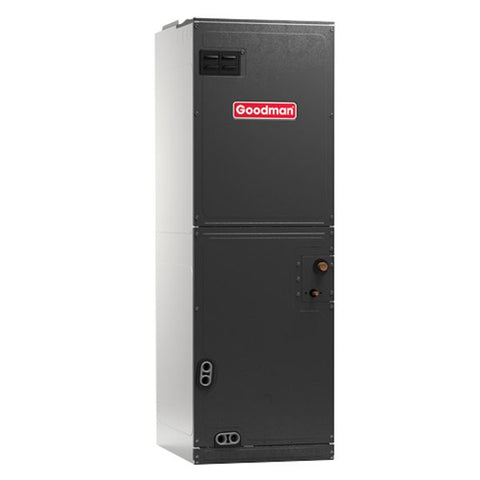

Goodman ASPT61D14 Air Conditioner Air Handler
- All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
- Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
- Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.
SPECIFICATIONS
| General Information | |
| Operating Mode | Heating and Cooling |
| Configuration | Multi-Position |
| DOE Regional Compliance | Nationwide |
| Performance | |
| Capacity | 5 Tons |
| Cooling Capacity | 56500 BTU |
| Nominal Cooling Capacity | 60000 BTU |
| Heating Capacity | 59000 BTU |
| SEER | 14.0 |
| EER | 11.5 |
| HSPF | 8.5 |
| Maximum Air Flow | 1800 CFM |
| Dimensions | |
| Product Weight | 427 Pounds |
| Shipping Weight | 447 Pounds |
| Certifications | |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| AHRI Reference Number | 7995680 |
| Country of origin | United States |
