Re-Verber-Ray DET3-30-125, Gas-Fired Low Intensity Tube Heater 125,000 BTU; Two Stage

Availability:
In-Stock

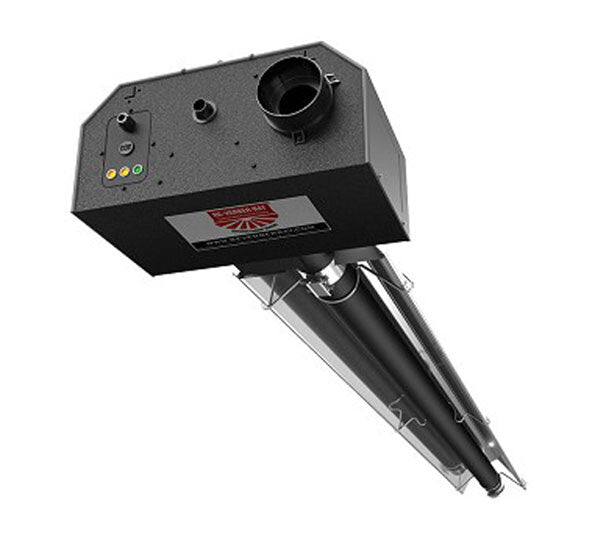

Re-Verber-Ray DET3-30-125 Low Intensity Tube Heater

  • Input Range: 125,000 BTU/h
  • Electrical: 120V, 60 Hz. 24V
  • Lengths  31’-5”
  • Gas Type: Natural or Propane
  • Two-stage gas valve (at 100% and 65%)
  • Product Series: Economical
  • Combustion Chamber: 4” Titanium Stabilized or Aluminized Steel
  • Limited Warranty: 1 year - Burner box components; 5 years - Combustion and radiant tubes; 10 years - Burner
  • Certification: CSA, IAS, Indoor, Outdoor
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
DET3-30-125
ID:
HE202-3005

PRODUCT INFO

Streamlined for economy and designed without sacrificing performance, the DET3 Series is a quality, energy efficient infrared heater at a more economical price. Our patented two stage technology, incorporated into the DET3 Series, provides more comfort while saving valuable energy dollars. Utilizing a direct spark ignition system and hot-rolled steel emitter tubes, this series is the best in this class of equipment.

Product Features

  • Input Range: 82,000 to 125,000 BTU/h
  • Gas Type:  Natural (3.5” W.C.) or  Propane (10.0” W.C.)
  • Gas Connection: 7/8” flare-M FPT Connection to 1/2” x 24”(304) SS flex connector provided
  • Electrical:  120V, 60 Hz. 24V
  • Control Amps: 1.7 Starting, 1.1 Running
  • Radiant Tubes: Hot-Rolled Steel
  • Patented two-stage operation
  • Pre-purge controls.

Reflector

  • Highly polished aluminum.
  • Continuous overlap design.
  • One reflector center support per heater.

Benefits Of Heating With Infared

  • Superior Comfort
  • Indoor Air Quality
  • Reduced Energy Consumption
  • Flexibility
  • Durability
  • Radiant Efficiency


SPECIFICATIONS


DET3-30-125


Gas Type
Natural or Propane

Electrical
120V, 60 Hz. 24V

Control Amps
1.7 Starting, 1.1 Running

High Fire
125000 BTU/h

Low Fire
82000 BTU/h

Weight (lbs)
160

Straight Length
31’- 5”

U-Tube Length
17’- 9”

Clearance to Combustibles

Front: 20”


Behind: 20”


Top: 6”


Below: 76”

Recommended Mounting Heights and Coverages

Recommended Mounting Height
12’ - 20’

Coverage Area Straight Config.
33’ x 18’

Coverage Area U-Tube Config.
18’ x 15’

Distance Between Heaters (ft.)
20’ - 30’

Distance Between Heater Rows (ft.)
30’ - 50’

Max. Distance Between Heaters and Wall (ft.)
20’
