Re-Verber-Ray DET3-60-175, Gas-Fired Low Intensity Tube Heater 175,000 BTU; Two Stage

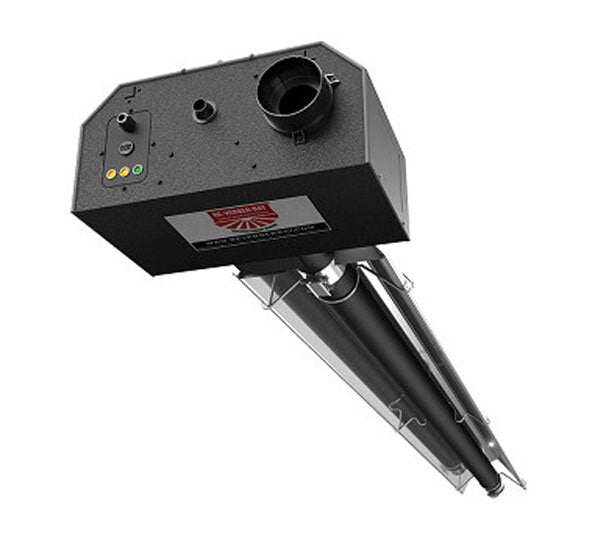

Re-Verber-Ray DET3-60-175 Low Intensity Tube Heater
- Input Range: 175,000 BTU/h
- Electrical: 120V, 60 Hz. 24V
- Lengths 60’-5”
- Gas Type: Natural or Propane
- Two-stage gas valve (at 100% and 65%)
- Product Series: Economical
- Combustion Chamber: 4” Titanium Stabilized or Aluminized Steel
- Limited Warranty: 1 year - Burner box components; 5 years - Combustion and radiant tubes; 10 years - Burner
- Certification: CSA, IAS, Indoor, Outdoor
PRODUCT INFO
Streamlined for economy and designed without sacrificing performance, the DET3 Series is a quality, energy efficient infrared heater at a more economical price. Our patented two stage technology, incorporated into the DET3 Series, provides more comfort while saving valuable energy dollars. Utilizing a direct spark ignition system and hot-rolled steel emitter tubes, this series is the best in this class of equipment.
Product Features
- Input Range: 125,000 to 175,000 BTU/h
- Gas Type: Natural (3.5” W.C.) or Propane (10.0” W.C.)
- Gas Connection: 7/8” flare-M FPT Connection to 1/2” x 24”(304) SS flex connector provided
- Electrical: 120V, 60 Hz. 24V
- Control Amps: 1.7 Starting, 1.1 Running
- Radiant Tubes: Hot-Rolled Steel
- Patented two-stage operation
- Pre-purge controls.
Reflector
- Highly polished aluminum.
- Continuous overlap design.
- One reflector center support per heater.
Benefits Of Heating With Infared
- Superior Comfort
- Indoor Air Quality
- Reduced Energy Consumption
- Flexibility
- Durability
- Radiant Efficiency
SPECIFICATIONS
| DET3-60-175 | |||
| Gas Type | Natural or Propane | ||
| Electrical | 120V, 60 Hz. 24V | ||
| Control Amps | 1.7 Starting, 1.1 Running | ||
| High Fire | 125000 BTU/h | ||
| Low Fire | 175000 BTU/h | ||
| Weight (lbs) | 265 | ||
| Straight Length | 60’- 5” | ||
| U-Tube Length | 32’- 5” | ||
Clearance to Combustibles | Front: 34” | ||
| Behind: 34” | |||
| Top: 6” | |||
| Below: 92” |
| Recommended Mounting Heights and Coverages | |||
| Recommended Mounting Height | 17’ - 40’ | ||
| Coverage Area Straight Config. | 67’ x 34’ | ||
| Coverage Area U-Tube Config. | 34’ x 26’ | ||
| Distance Between Heaters (ft.) | 30’ - 40’ | ||
| Distance Between Heater Rows (ft.) | 40’ - 60’ | ||
| Max. Distance Between Heaters and Wall (ft.) | 25’ | ||
