Re-Verber-Ray DX3L-20-50, Gas-Fired Low Intensity Tube Heater 50,000 BTU; Single Stage

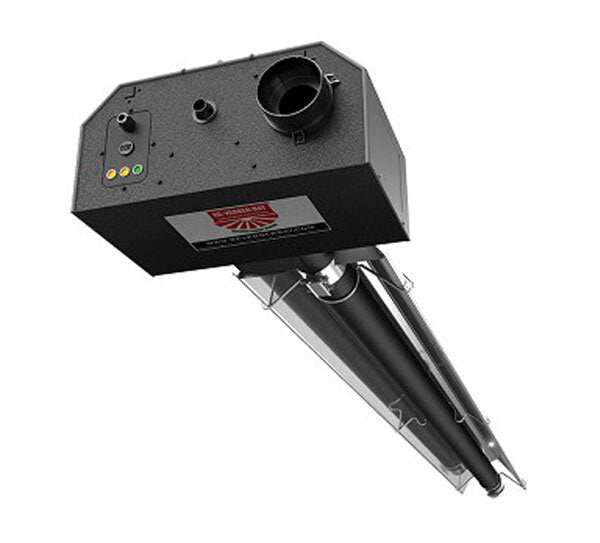

Re-Verber-Ray DX3L-20-50 Low Intensity Tube Heater
- Input Range: 50,000 BTU/h
- Electrical: 120V, 60 Hz. 24V
- Lengths 21’- 9”
- Gas Type: Natural or Propane
- Single-Stage gas valve
- Product Series: Premium
- Combustion Chamber: 4” Titanium Stabilized or Aluminized Steel
- Limited Warranty: 3 year - Burner box components; 5 years - Combustion and radiant tubes; 10 years - Burner
- Certification: CSA, IAS, Indoor, Outdoor
PRODUCT INFO
Packed with quality features, the DX3L represents the highest in quality, single-stage, low intensity tube heaters. Performance is enhanced through the use of a specially designed stainless steel burner and black coated titanium stabilized and/or aluminized coated steel radiant tube exchangers. The DX3L Series offers superior low intensity heat, performance, and longevity.
Product Features
- Input Range: 50,000 BTU/h
- Gas Type: Natural (3.5” W.C.) or Propane (10.0” W.C.)
- Gas Connection: 7/8” flare-M FPT Connection to 1/2” x 24”(304) SS flex connector provided
- Electrical: 120V, 60 Hz. 24V
- Control Amps: 4.8 Starting, 1.1 Running
- Radiant Tubes: .95 Emissive Black Coated Aluminized Steel
- Pre- and post-purge controls
- Self-diagnostic LED, microprocessor based circuitry
- Independent control-air-gas compartments with tool-free access
- Outdoor approval with OD-Kit
- Single-Stage gas valve
Reflector
- Highly polished aluminum
- Two end caps included
- Reflector tension springs
- Continuous overlap design
- One reflector center support per reflector
Benefits Of Heating With Infared
- Superior Comfort
- Indoor Air Quality
- Reduced Energy Consumption
- Flexibility
- Durability
- Radiant Efficiency
SPECIFICATIONS
| DX3L-20-50 | |||
| Gas Type | Natural or Propane | ||
| Electrical | 120V, 60 Hz. 24V | ||
| Control Amps | 4.8 Starting, 1.1 Running | ||
| Input Range | 50000 BTU/h | ||
| Weight (lbs) | 120 | ||
| Straight Length | 21’- 9” | ||
| U-Tube Length | 13’- 1” | ||
| Clearance to Combustibles | Front: 9” | ||
| Behind: 9” | |||
| Top: 6” | |||
| Below: 47” |
| Recommended Mounting Heights and Coverages | |||
| Recommended Mounting Height | 10’ - 16’ | ||
| Coverage Area Straight Config. | 20’ x 12’ | ||
| Coverage Area U-Tube Config. | 12’ x 12’ | ||
| Distance Between Heaters (ft.) | 10’ - 20’ | ||
| Distance Between Heater Rows (ft.) | 20’ - 40’ | ||
| Max. Distance Between Heaters and Wall (ft.) | 16’ | ||
