Re-Verber-Ray HL3-70-200, Gas-Fired Low Intensity Tube Heater 200,000 BTU; Two Stage

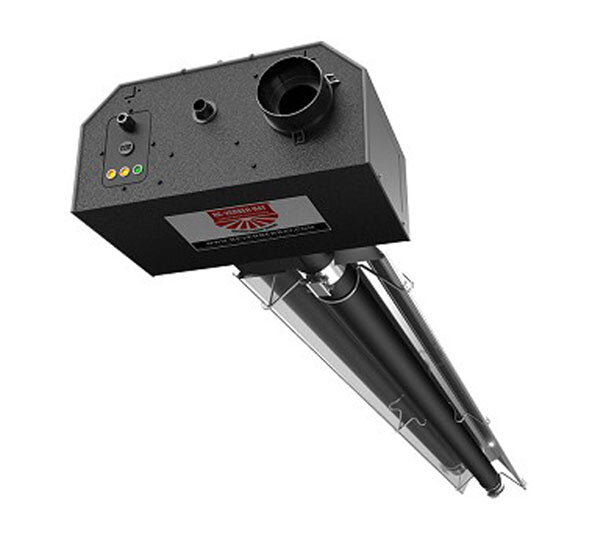

Re-Verber-Ray HL3-70-200 Low Intensity Tube Heater
- Input Range: 200,000 BTU/h
- Electrical: 120V, 60 Hz. 24V
- Lengths 70’-1”
- Gas Type: Natural or Propane
- Two-stage gas valve (at 100% and 65%)
- Product Series: Premium
- Combustion Chamber: 4” Titanium Stabilized or Aluminized Steel
- Limited Warranty: 3 year - Burner box components; 5 years - Combustion and radiant tubes; 10 years - Burner
- Certification: CSA, IAS, Indoor, Outdoor
PRODUCT INFO
The HL3 Series, packed with quality features, represents today’s most energy efficient line of infrared tube heaters. In addition, the highest quality materials and construction features ensure years of reliable and efficient operation. No other infrared heater can match the performance and quality of the HL3 Series.
Product Features
- Input Range: 145,000 to 200,000 BTU/h
- Gas Type: Natural (3.5” W.C.) or Propane (10.0” W.C.)
- Gas Connection: 7/8” flare-M FPT Connection to 1/2” x 24”(304) SS flex connector provided
- Electrical: 120V, 60 Hz. 24V
- Control Amps: 4.8 Starting, 1.1 Running
- Radiant Tubes: .95 Emissive Black Coated Aluminized Steel
- Patented two-stage operation
- Pre- and post-purge controls
- Self-diagnostic LED, microprocessor based circuitry
- Independent control-air-gas compartments with tool-free access
- Outdoor approval with OD-Kit
Reflectior
- Highly polished aluminum
- Two end caps included
- Reflector tension springs
- Continuous overlap design
- One reflector center support per reflector
Benefits Of Heating With Infared
- Superior Comfort
- Indoor Air Quality
- Reduced Energy Consumption
- Flexibility
- Durability
- Radiant Efficiency
SPECIFICATIONS
| HL3-70-175 | |||
| Gas Type | Natural or Propane | ||
| Electrical | 120V, 60 Hz. 24V | ||
| Control Amps | 4.8 Starting, 1.1 Running | ||
| High Fire | 200000 BTU/h | ||
| Low Fire | 145000 BTU/h | ||
| Weight (lbs) | 300 | ||
| Straight Length | 70’- 1” | ||
| U-Tube Length | 37’- 3” | ||
Clearance to Combustibles | Front: 41” | ||
| Behind: 41” | |||
| Top: 6” | |||
| Below: 94” |
| Recommended Mounting Heights and Coverages | |||
| Recommended Mounting Height | 17’ - 40’ | ||
| Coverage Area Straight Config. | 78’ x 38’ | ||
| Coverage Area U-Tube Config. | 39’ x 29’ | ||
| Distance Between Heaters (ft.) | 30’ - 40’ | ||
| Distance Between Heater Rows (ft.) | 40’ - 60’ | ||
| Max. Distance Between Heaters and Wall (ft.) | 30’ | ||
