Re-Verber-Ray LS3-20-50, Gas-Fired Low Intensity Tube Heater 50,000 BTU; Single Stage

Availability:
In-Stock

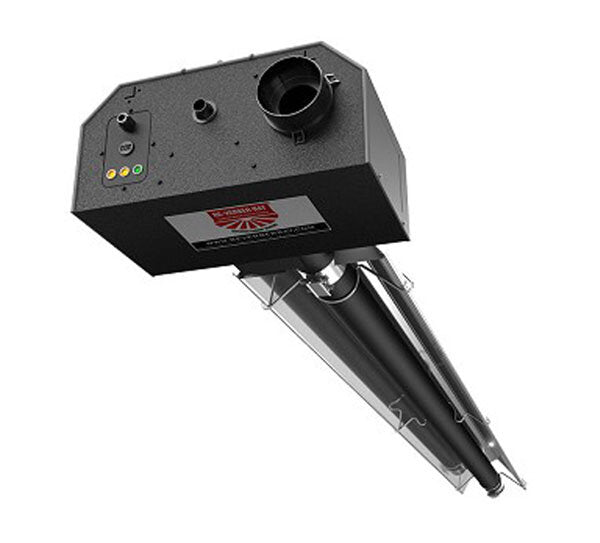

Re-Verber-Ray LS3-20-50 Low Intensity Tube Heater

  • Input Range: 50,000 BTU/h
  • Electrical: 120 VAC, 60 Hz GRD, 1 Ph., 3-wire.
  • Lengths  21’ - 10”
  • Gas Type: Natural or Propane
  • Single-stage gas valve
  • Product Series: Residential
  • Coated Titanium Treated Combustion Chamber
  • Limited Warranty: 1 year - Burner box components; 3 years - Combustion and radiant tubes; 5 years - Burner
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

SKU:
LS3-20-50
ID:
HE202-5007

PRODUCT INFO

The LD3 Series extends the energy saving benefits of two-stage technology to many commercial, industrial and residential applications. Designed for lower mounting heights, the LD3 Series is ideal for low ceiling commercial/industrial areas such as entry ways, mezzanines, lunch rooms and restaurant patios. Specific models are suitable in residential garages, enclosed swimming pools, solariums and porches.

Product Features

  • Input Range: 50,000 BTU/h
  • Gas Type: Natural or  Propane
  • Gas Connection: 5/8 in. flare connecting to 1/2” NPT adapter to 1/2 in. x 24 in. (304) SS flex connector provided. 1/8”F NPT ball valve & inlet tapincluded.
  • Electrical: 120V, 60Hz, 1 Ph., 3-wire.
  • Control Amps: 4.8A Starting, 1.1A Running
  • Single-Stage
  • Pre and post purge controls.
  • Tool-free access to controls.
  • Serviceability while unit is operating.
  • Separated air and gas burner chamber.
  • Symmetrical placement of ignition tube.
  • Hinged control compartment provides ease in servicing.
  • 3-piece independent compartment cover.
  • ABS plastic air intake collar for connection to 4” PVC/DWV pipe.

Reflector

  •  Highly polished aluminum.
  • Continuous overlap design.
  • Two end caps included.
  • Anti-rattle tension springs.
  • One center support per reflector

Benefits Of Heating With Infared

  • Superior Comfort
  • Indoor Air Quality
  • Reduced Energy Consumption
  • Flexibility
  • Durability
  • Radiant Efficiency


SPECIFICATIONS


LD3-20-50



Gas Type
Natural or Propane

Electrical
120V, 60Hz, 1 Ph., 3-wire

Control Amps
4.8A Starting,
1.1A Running

BTU/h Input
50000 BTU/h

Weight (lbs)
100

Straight Length
21’ - 10”

U-Tube Length
13’ - 0”

Clearance to Combustibles

Front: 11”


Behind: 11”


Top: 6”


Below: 48”

Recommended Mounting Heights and Coverages

Recommended Mounting Height
9’ - 15’

Coverage Area Straight Config.
22’ x 15’

Coverage Area U-Tube Config.
12’ x 12’

Distance Between Heaters (ft.)
20’ - 30’

Distance Between Heater Rows (ft.)
30’ - 50’

Max. Distance Between Heaters and Wall (ft.)
18’
