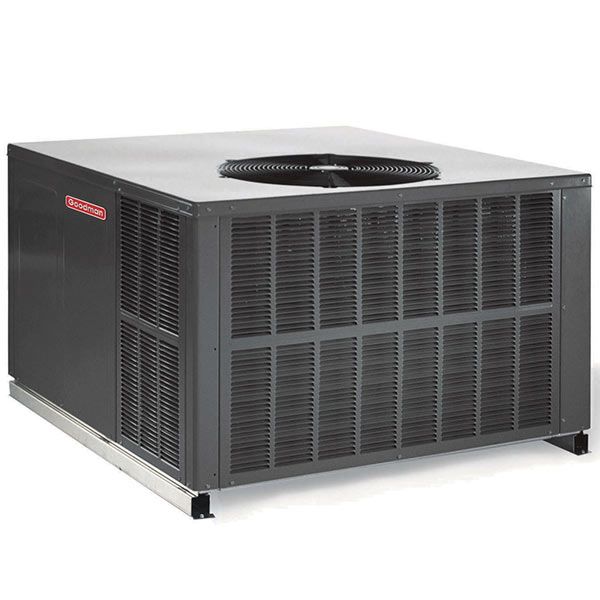

Goodman 3 Ton 16 SEER Downflow/Horizontal Packaged Heat Pump System

Availability:
In-Stock
Goodman - GPH16M - GPH1636M41 - 3.0 Ton Cooling - 33,600 BTU/Hr Cooling - 33,600 BTU/Hr Heating at 47 Degrees Fahrenheit - Packaged Central Heat Pump System - 16 SEER - 8.2 HSPF - Downflow/Horizontal - 208-230 V - 1 Phase - 60 Hz
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

 The GPH16M combines a Goodman heat pump, evaporator coil, and ECM blower to provide efficient heating and cooling from a single unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home. The GPH1636M41 can be used in either downflow or horizontal airflow applications. This packaged unit features convenient access panels that make installation and maintenance a breeze. Streamline your comfort today with this Goodman packaged unit.

High-Efficiency Coils
The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.

Secure Design
The cabinet of the GPH1636M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.

Filter Drier
A biflow filter drier is installed in the liquid line of this packaged unit's heat pump which removes moisture and traps impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.

Quiet Comfort
A sound-insulated blower compartment means that the GPH1636M41 provides year-round comfort without disrupting your home.

Scroll Compressor
This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.

Compressor Protection
Goodman installed a suction accumulator that collects excess liquid refrigerant in their GPH16M packaged units. This prevents refrigerant from flooding and damaging the compressor during operation.

Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.

SPECIFICATIONS

General Information
TypeHeat Pump Packaged Unit
Operating ModeHeating and Cooling
Refrigerant TypeR-410A
Blower MotorMulti-Speed
Motor TypeECM
ConfigurationDownflow/Horizontal
Installation LocationOutdoor
Compressor Stages Two
DOE Regional ComplianceNationwide
Installation AvailableYes
UPC663051525108



Performance
Capacity 3.0 Tons
Cooling Capacity34000 BTU
Heating Capacity33600 BTU
SEER 16.0
EER12.0
Maximum Air Flow1604 CFM
Minimum Air Flow846 CFM
Maximum Sound Level 76 dB



Dimensions
Product Height34 3/4 Inches
Product Width47 Inches
Product Depth51 Inches
Product Weight365 Pounds
Shipping Weight375 Pounds



Certifications
ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number8143314
