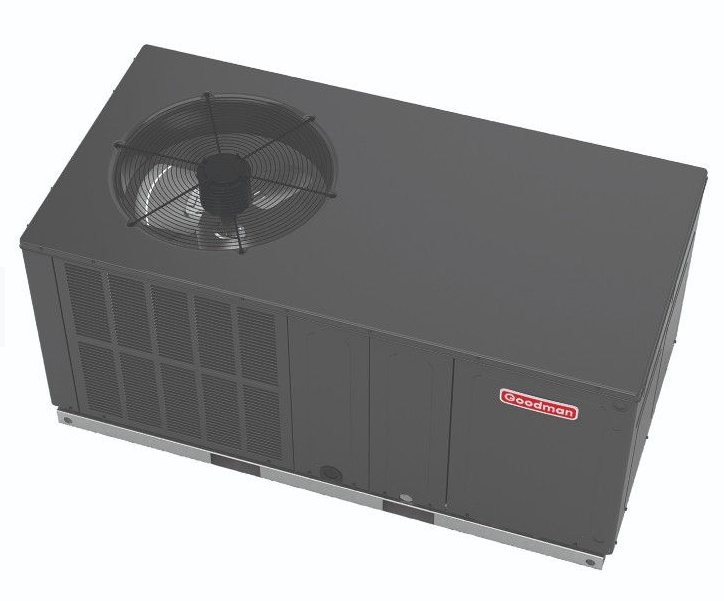

Goodman 2.5 Ton 13.4 SEER Package Heat Pump Unit R32 Horizontal- GPHH33031
Overview
The Goodman GPHH33031 packaged heat pump is a quiet, affordable all-in-one heating and cooling solution. Featuring horizontal discharge and a factory pre-charged refrigerant system, it is designed for quick and straightforward installation. With standard efficiency and proven reliability, the GPHH33031 delivers dependable year-round comfort at a cost-effective price.
Using proven heat pump technology, this unit efficiently transfers heat between indoor and outdoor environments to provide both heating and cooling from a single, compact system.
Quick Facts
-
Suitable for small to medium-size homes in average climates
-
2.5-ton packaged heat pump
-
13.4 SEER2 efficiency
-
Factory charged and tested
-
Low sound output
$4,197.00 USD
SKU:
GPHH33031
ID:
HE101-2113
Categories:
PRODUCT INFO
2.5 Ton
The Goodman GPHH33031 is a 2.5-ton packaged heat pump, typically suitable for small homes in many climates. Heating operation is effective down to approximately 30°F. For temperatures below this point, a field-installed electric backup heat kit is required (sold separately).
13.4 SEER2
With a 13.4 SEER2 rating, the GPHH33031 meets standard efficiency requirements and is approved for installation in all mainland U.S. states.
Warranty
Goodman provides a 10-year limited parts warranty when the unit is installed according to state and local codes and registered online with the manufacturer.
Durability & Reliability
Built with a heavy-gauge galvanized steel cabinet, enhanced coil protection, and a fully enclosed, permanently lubricated fan motor, the GPHH33031 is designed for long service life and reduced maintenance.
Installation & Maintenance
Factory charged and tested, this packaged unit eliminates the need for additional refrigerant during installation. Designed for horizontal installation, it is ideal for applications where an indoor furnace or air handler is not practical. A fully insulated blower compartment with accessible panels allows for easier servicing.
Comfort-Focused Design
Engineered for quiet, efficient, and dependable operation, the GPHH33031 delivers consistent year-round comfort at an affordable price.
SPECIFICATIONS
| Goodman 2.5 Ton 13.4 SEER Package Heat Pump Unit - R32 Horizontal | |
|---|---|
| SKU | GPHH33031 |
| Weight (in lbs) | 324.000000 |
| AHRI Certificate Number | 208842405 |
| Brand/Manufacturer | Goodman |
| Replaces | 663051524965, 663051524965 |
| HSPF2 | 6.70 |
| Cooling BTU | 27,800 BTU |
| Heating BTU | 27,600 BTU |
| Blower Motor | Multi Speed - ECM |
| Maximum CFM | 1050 |
| Decibel Level (dBA) | 76 decibels |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Horizontal |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Electrical | 208/230v 1Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 35 amps |
| Min. Breaker Size | 22.4 amps |
| Tonnage | 2.5 Ton |
| Height | 27 1/2" |
| Width | 66" |
| Depth | 34" |
| Warranty | 10 Years with Online Registration |
