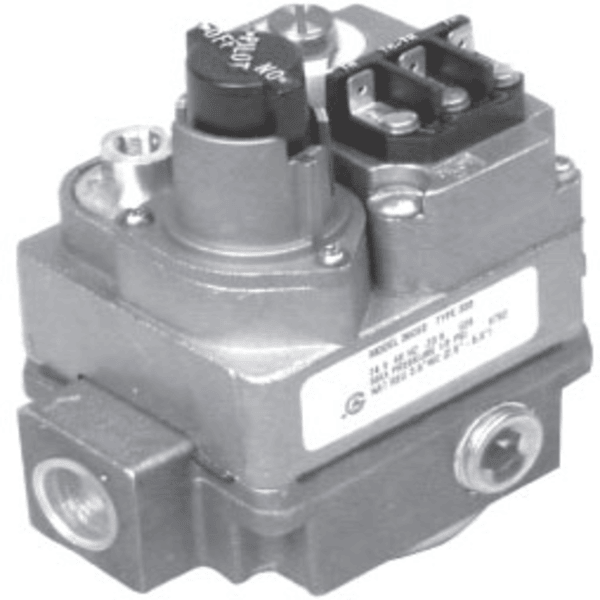

W-R36C03A-410 120v 3/4" X 3/4" Standing Pilot Gas Valve Includes LP Kit & Reducer Bushings Replaces 36C03A-400 36C03A-310 Side View

White-Rodgers 36C03A-410 120v 3/4" X 3/4" Standing Pilot Gas Valve Includes LP Kit & Reducer Bushings Replaces 36C03A-400 36C03A-310

Availability:

In-Stock

Gas Valve
Type Standing Plot, Fast Open, Straight, Through Wiring
Nominal Size 3/4 Inch
End Connection Female Threaded x Female Threaded
Input Supply Rating 120 Volt AC at 60 Hertz 0.23 Amp
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Convertible Natural/Liquid Propane, Liquid Propane Conversion Kit, Line Interrupter, Reducer Bushing Kit
Exclusions Inlet Pressure Tap, Side Tap
Application Intermittent Ignition System
Applicable Standard CSA (Canada and US)
Fuel Type Natural/Liquid Propane
Pilot Gas Connection 1/4 Inch Compression Fitting
Pressure Tap Connection 1/8 Inch Threaded
Capacity 280000 BTU/Hour (Natural Gas), 453600 BTU/Hour (Liquid Propane Gas)
Regulator Setting 3.5 Inch
Regulator Adjustment Range 2.5 to 5 Inch

$181.00 USD

Default Title

Buy Now

Add to wishlist

SKU:

36C03A-410

ID:

WR100-2MP9-0126

Categories:

Controls / Gas Heat Controls / HVAC / HVAC Parts and Components
