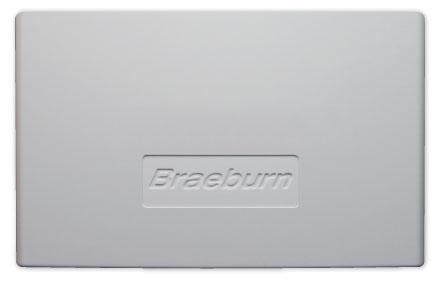

Braeburn 2-Zone Expander Panel Model 140424
Warranty: 5 Year
$101.15 USD
SKU:
BR140424
ID:
PH501-0058
Categories:
PRODUCT INFO
Product Features:
- Compact 8” x 5” foot print stacks neatly with main panel
- Add up to 28 additional zones (32 total)
- Can be used with virtually all low-voltage thermostats and dampers from other manufacturersPush-in terminals for easy wiring - no screw driver needed
- Easy setup and configuration
- LED’s show all calls and damper status at a glance
- Installs up to 500 ft. from main panel
Warranty: 5 Year
SPECIFICATIONS
| Panel Power: | 3 VA maximum for panel | |
| System Power: | 75 VA maximum, 50 VA maximum per zone | |
| Protection: | Electronic self resetting, current limiting on each zone | |
| Zone Damper Control: | Compatible with virtually all 24 VAC powered and spring dampers limiting per zone | |
| Indicators: | LED’s for all thermostats and dampers | |
| Switches: | 4 position address switch | |
| Thermostats: | Conventional or heat pump | |
| Terminals: | Panel Power: 24V, 24C Thermostats (2 each): R, Y1, Y2, W1/E/AX1, W2/AX2, O/B/W3, G, L, C Dampers: (2 each): PO, C, PC Communication (2 each): COM1, COM2, GND, COM3, COM4 |
| Power | 24 VAC |
| Indicators | LED Indicators for thermostats, equipment and dampers |
| Thermostat | Conventional or heat pump up to 4H / 2C |
| Construction | PC Board in High Impact Housing |
| Mounting | Wall or Return Air Plenum |
| Environmental | Storage - 40˚ F to 167˚ F (-40˚ to 75˚ C) Operating - 22˚ F to 167˚ F (-30˚ F to 75˚ C) |
