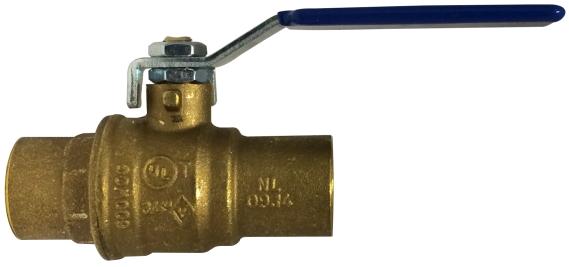

1-1/4” SWT X SWT Lead Free Brass Italian Ball Valve

Availability:
In-Stock

$88.27 USD

Title
Buy Now
SKU:
P420-1409
ID:
P420-1409

PRODUCT INFO

       SOLID CHROME PLATED BRASS BALL:

  • Suitable for full range of liquids and gases
  • Minimal pressure drop due to large full size ports
  • Bottom loaded, pressure retaining stem
  • Pressure rated at 600psi (42 bars) WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin TFE stem packing seal, thrust washer and seats.
  • Blue vinyl insulator on heavy duty plated carbon steel handles.
  • Fast 1/4 turn open or close operation
  • Low operating torque
  • Flow can go both directions
  • 600 PSI non-shock cold water, gas, oil - 150 PSI saturated steam
  • Adjustable stem packing gland
  • Maximum operating temperature: 248°F (120°C) at 600 PSI
  • Minimum operating temperature: -20°F (-40°C)
  • Each valve individually tested
  • Forged Brass - for more strength
  • Threaded ends to ANSI B1.20.1
  • Hard chromium plated solid ball
  • Bottom entry, blow-out proof stem
  • Deeper threads - for better connections
