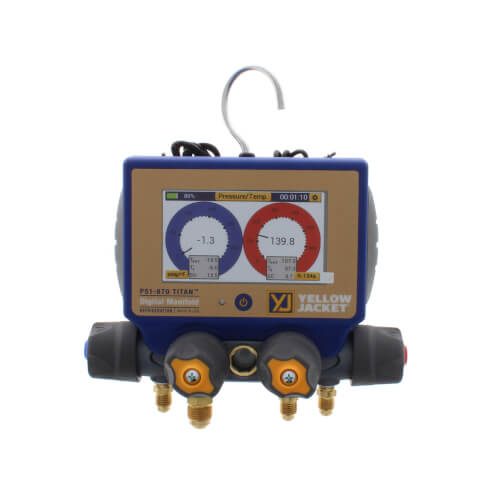

Yellow Jacket 40870 P51 Titan Series 4-Valve Digital Manifold

Availability:
In-Stock
  • Calculates and displays temperatures, pressures, superheat and subcooling
  • Full color touchscreen display
  • Wireless Bluetooth capability for use with free ManTooth app
  • 126 refrigerant profiles loaded
  • On board data logging exports to your smart device or computer through USB
  • Backlit display with high/low alarms, auto dimming and auto shut-off
  • Re-chargeable battery with battery life indicator
  • Includes two pipe clamp probes, vacuum sensor, hose set and carrying case

$1,102.10 USD

Title
Buy Now
SKU:
40870
ID:
TYJ100-1S9-1115

PRODUCT INFO

Measures high and low side pressures and temperatures

  • Displays vapor and liquid saturation temperatures
  • System superheat and subcooling calculations
  • On board data logging; export to your computer through USB or to your phone via the YJACK VIEW™ app for 40870, 40875 and 40877 (40860 uses the ManTooth®  app)
  • Pressure hold mode displays rate of change for both vacuum and positive pressure measurements
  • 4-way TITAN®  valve block
  • 126 refrigerant profiles stored in the instrument including new blends not currently on the REFPROP database.
  • Backlit display with auto-dimming
  • Auto shut-off
  • Bluetooth® capability
  • Includes two temperature clamps (40877 kit has YJACK™ Wireless Temperature Clamps)
  • Optional vacuum sensor available (included with P51-870 TITAN®)
  • Vacuum measurements, targets and leak testing
  • High and low alarms
  • Re-chargeable battery with battery life indicator
  • Continuous use no backlight: 80 hours
  • Continuous use full backlight: 5 hours (40860); 4 hours (40870)
  • US and international units (bar, psia, psig, kPa, MPa, kg/cm2)
  • Maximum working pressure 700 psia (48.3 bar)
  • USB charging port
  • IP52 certified
  • Robust housing
  • Two year warranty
  • Additional features and benefits of the P51-870 TITAN®:
  • 4.3” Full color touch screen display
  • Digital and graphical representation of pressure and temperature measurements
  • Vacuum sensor included
  • Set of 4 manifold hoses included: (3) 1/4″ RYB and (1) 3/8″ yellow vacuum hose
  • 40875 and 40877 include: (2) 5/16″ hoses RB
  • Backpack carrying case included
