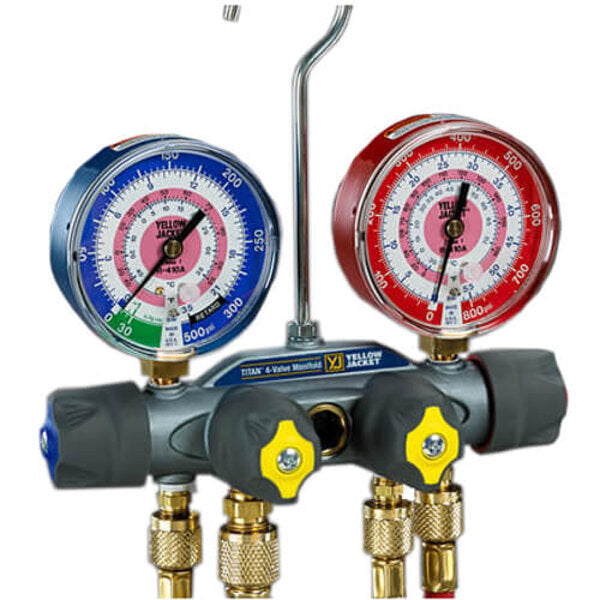

Yellow Jacket 49963 Titan 4-Valve Manifold
- Valves are front mounted for fast easy access
- Proven sliding double O-ring piston for reliability and long service life
- Each manifold is individually tested before shipping
- Slip resistant handle design
- Lifetime warranty on manifold bar and stem assembly
$265.00 USD
SKU:
49963
ID:
TYJ100-1S9-1023
Categories:
PRODUCT INFO
- Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
- 3/8″ Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4″)
- Large, easy-to-read 3-1/8″ (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
- Front access for easy field recalibration
- Double “O” ring piston for reliability and long service life
- Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
- Contoured easy-grip handles for positive control; color-coded for ready identification
- Sight glass to easily view refrigerant movement and condition during charging and recovery
- Optional protective gauge boots available
- Heavy duty hook won’t pull out
- Also available with 3-1/2″ (80 mm) red and blue liquid-filled gauges
- Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified
SPECIFICATIONS
| Gauge Size | 3-1/8" | |
| Hose Conn. | 1/4" & 3/8" Vacuum | |
| Shipping Weight | 2.60 | |
| Shipping Weight | 10.10 | |
| Shipping Length | 10.80 | |
| Shipping Height | 5.00 |
