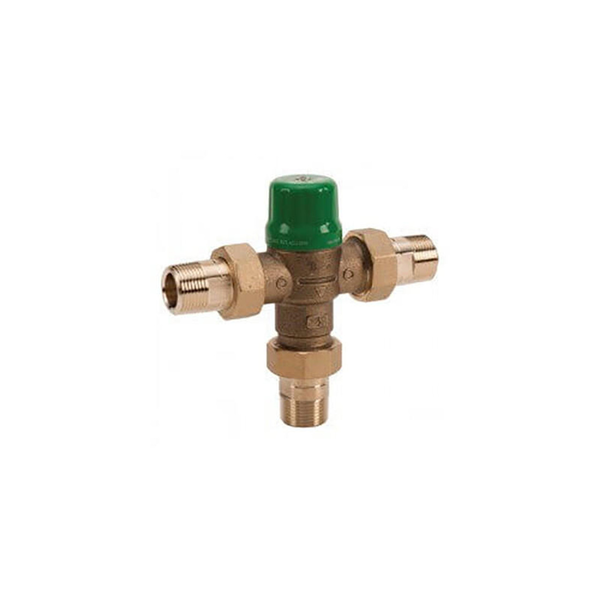

Taco 5124-H2 1" Press Mixing Valve (Low Lead)
Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5122-T2 is a brass mixing valve, ideal for a wide range of domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5122-T2 is capable of handling a supply temperature of up to 180 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve's temperature control may be locked to prevent fluctuations in mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5122-T2.
Product Features
Product Components
Product Applications
Product Features
- Lead-Free Compliant (.25% Lead)
- Suitable For Use in Potable Water
- No Routine Maintenance Required
- Lockable Maximum Temperature Setting
- Outlet Temperature StripAvailable 1/2", 3/4", 1"
- NSF 61 Certified
- High Flow
- Snap on Protective Cover
- No Routine Maintenance Required
Product Components
- (1) Taco 5122-T2 Lead Free Mixing Valve
- (1) Outlet Temperature Strip
Product Applications
- Domestic Hot Water
- Handled Fixtures
- Handleless Fixtures
- Point of Distribution
$230.50 USD
SKU:
5124-H2
ID:
TC200-2S9-0177
Categories:
SPECIFICATIONS
| Bade Type | Forget Brass | |
| Application | Point of Use Point of Source | |
| Size | 1'' | |
| Max Flow (GPM) | 14 | |
| Flow Capacity (Cv) | 1.8 | |
| Lead Free | Yes |
| Connection Type | Press x Press | |
| Connection method | Press | |
| Body Pattern | 3-way | |
| Max Pressure (PSI) | 200 | |
| Standards met | ASSE 1017 ASSE 1070 |
