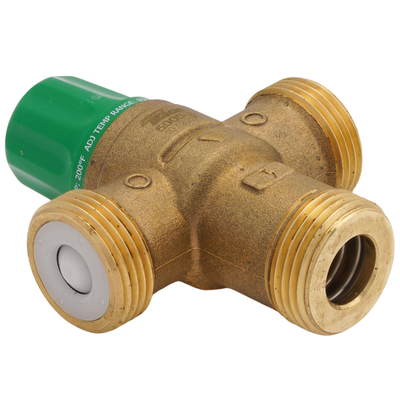

Taco 5003-T3 3/4" NPT Male Union Mixing Valve (Low Lead)
Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5003-T3 is a low head loss brass mixing valve, ideal for a wide range of hydronic heating and domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5003-T3 is capable of handling temperatures up to 176 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve features a tamper resistant cap to prevent alterations to the mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5003-T3.
Features:
Includes:
Applications:
Features:
- less than .25% lead
- ASSE 1017 Listed
- Ideal for Domestic Water Distribution Points
- Suitable for use in Potable Water
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Union and NPT Options
- Sweat, NPT, Pex, CPVC Union Connections
- Low Headloss
- Outlet Temperature Strip
- Optional Dial Gauge and Adaptor
Includes:

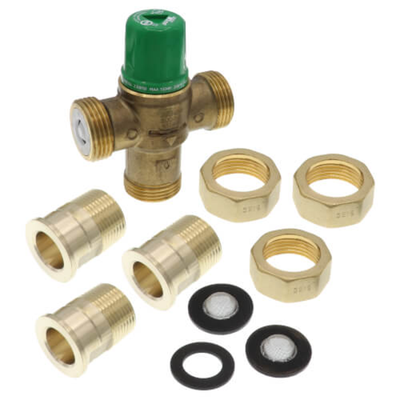

- (1) Taco 5003-T3 Lead Free Mixing Valve
- (1) Outlet Temperature Strip
Applications:
- Low Temperature and Radiant Systems
- Domestic Hot Water
$181.00 USD
SKU:
5003-T3
ID:
TC200-2S9-0071
Categories:
SPECIFICATIONS
| Body Type | Forget Brass | |
| Application | Point of Source | |
| Connection Type | MNPT x MNPT | |
| Connection Method | Threaded | |
| Lead Free | Yes | |
| Standards Met | ASSE 1017 |
| Body Pattern | 3-Way | |
| Max Pressure (PSI) | 200 | |
| Max Flow (GPM) | 20 | |
| Flow Capacity (Cv) | 2.3 | |
| Size | 3/4'' |
