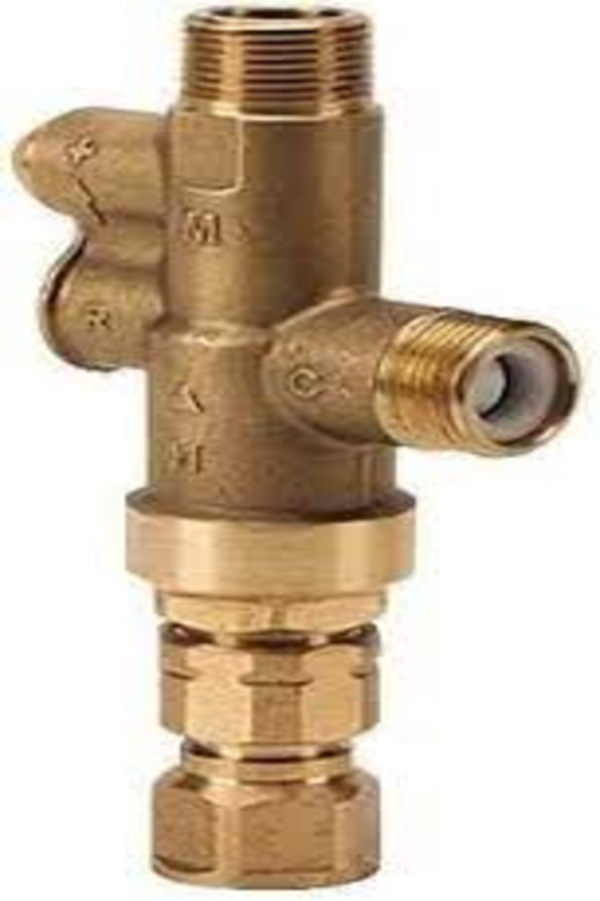

Taco 5123-WH-N3 3/4" NPT Union Direct Mount Water Heater Mixing Valve (Low Lead)
Taco 5123-WH-N3 3/4" NPT Union Direct Mount Water Heater Mixing Valve (Low Lead)
Availability:
In-Stock
This versatile NSF 61, ASSE 1017, ASSE1070 mixing valve provides the ultimate performance for domestic hot water applications. The 5123-WH is specifically designed to be mounted directly on the water heater for a fast and simple installation. The ASSE1017 certification allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120?F or less.
The 5123-WH is specifically designed to be mounted directly on the water heater for a fast and simple installation. Ease of installation is the goal of this mixing valve. To help to accomplish this a recirculation port is included right on the valve. This allows the return leg of the recirculation system to be connected directly to the mixing valve, eliminating a secondary connection point.
Features:
- less than .25% lead
- Dual Listed for ASSE 1017 and 1070
- UPC Certified
- Suitable for use in Potable Water
- Check Valves Included
- Port for recirculation return line
- No Routine Maintenance Required
- Lockable Max. Temperature Setting
- Outlet Temperature Strip
Includes:
- (1) Taco 5123-WH-N1 Lead Free Mixing Valve
- (1) Outlet Temperature Strip
Applications:
- Domestic Hot Water
$232.00 USD
SKU:
5123-WH-N3
ID:
TC200-2S9-0158
Categories:
SPECIFICATIONS
| Bade Type | Forget Brass | |
| Application | Point of Source Point of Use | |
| Size | 3/4'' | |
| Connection Type | MNPT x MNPT | |
| Connection Methode | Threaded | |
| Standards Met | ASSE 1017 ASSE 1070 |
| Max Flow (GPM) | 12 | |
| Temperatyre Range (F) | 85°F - 176°F | |
| Max Pressure (PSI) | 230 | |
| Bady Pattern | 3-way | |
| Flow Capacity | 4.1 | |
| Lead Free | Yes |
