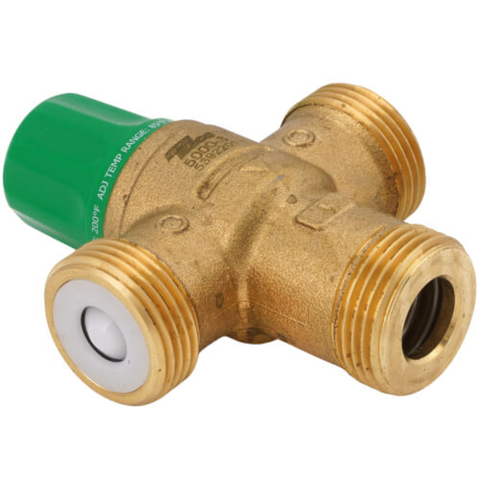

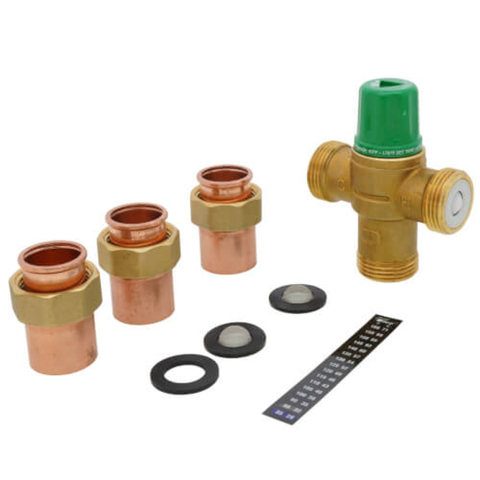

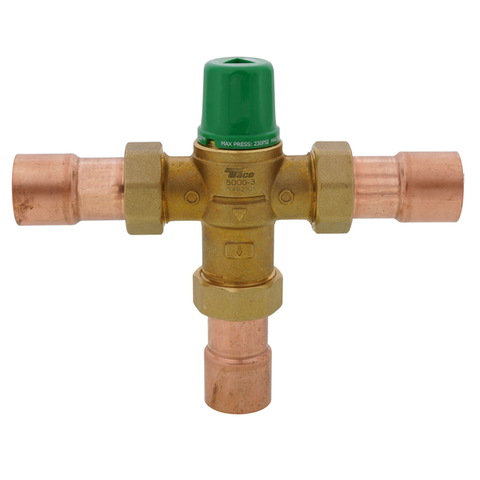

Taco 5004-HX-C3 1" Sweat Union Heating Only Mixing Valve
Taco's 5000 Series Heating Only version of mixing valves provides the high performance temperature stability required for today's radiant heating systems. It makes this mixing valve is an ideal choice for a radiant heating system whether in slab, over pours or in joist bay heating installations. Add to that multiple connection types such as straight NPT, union (sweat, threaded, CPVC or Pex) and you have a series of mixing valve that will fit most of your installation needs.
Features
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Low Headloss
- Outlet Temperature Strip
Applications:
- Low Temperature and Radiant Systems
- In Slab
- Over Pours
- Joist Bay Heating Installations
$196.50 USD
SKU:
5004-HX-C3
ID:
TC200-2S9-0142
Categories:
SPECIFICATIONS
| Bade Type | Forget Brass | |
| Application | Point of Source Heating Only | |
| Size | 1'' | |
| Connection Type | C x C | |
| Connection Method | Sweat | |
| Temperature Range | 85°F - 176°F |
| Max Pressure (PSI) | 230 | |
| Max Flow (GPM) | 20 | |
| Flow Capacity (Cv) | 2.3 | |
| Body Pattern | 3-Way | |
| Accuracy | ±3°F |
