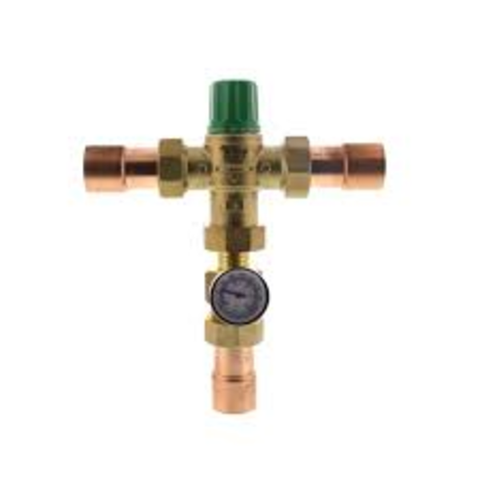

Taco 5004-C3-G 1" Sweat Union Mixing Valve w/ Gauge (Low Lead)

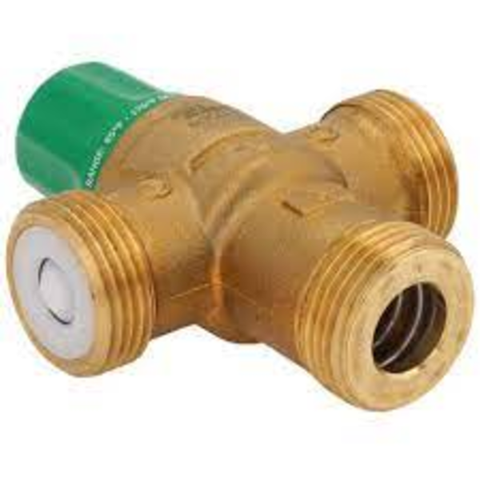

Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5004-C3-G is a low head loss brass mixing valve, ideal for a wide range of hydronic heating and domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5004-C3-G is capable of handling temperatures up to 176 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve features a tamper resistant cap to prevent alterations to the mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5004-C3-G.
Features:
Includes:
Applications:
Features:
- less than .25% lead
- ASSE 1017 Listed
- Ideal for Domestic Water Distribution Points
- Suitable for use in Potable Water
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Union and NPT Options
- Sweat, NPT, Pex, CPVC Union Connections
- Low Headloss
- Outlet Temperature Strip
- Optional Dial Gauge and Adaptor

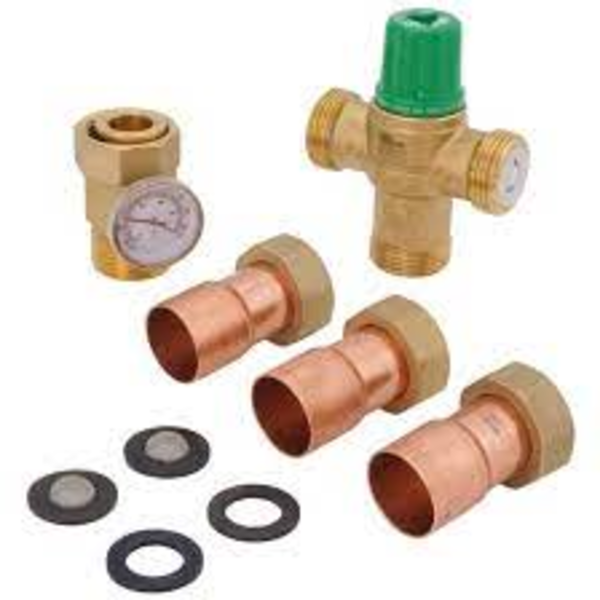

Includes:
- (1) Taco 5004-C3-G Lead Free Mixing Valve
- (1) Temperature Gauge
- (1) Outlet Temperature Strip
Applications:
- Low Temperature and Radiant Systems
- Domestic Hot Water
$260.00 USD
SKU:
5004-C3-G
ID:
TC200-2S9-0224
Categories:
SPECIFICATIONS
| Bade Type | Forget Brass | |
| Application | Point of Source | |
| Size | 1'' | |
| Connection Type | C x C | |
| Connection Method | Sweat | |
| Standards Met | ASSE 1017 |
| Max Pressure (PSI) | 200 | |
| Max Flow (GPM) | 24 | |
| Flow Capacity (Cv) | 2.3 | |
| Body Pattern | 3-Way | |
| Includes | Gauge | |
| Lead Free | Yes |
