    Home HVAC HVAC Motors Condenser Fan ECM Motors Century Condenser Fan ECM Motor, 825 RPM, 1/6 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

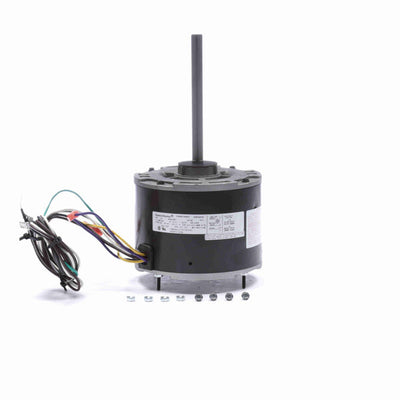

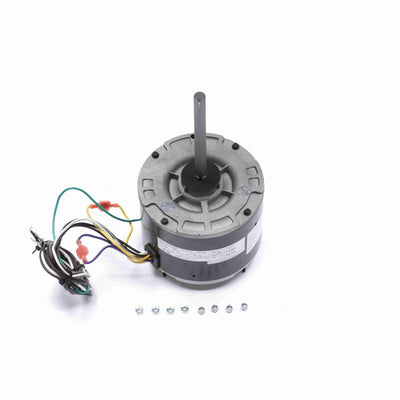

    Century Condenser Fan ECM Motor, 825 RPM, 1/6 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

    Availability:
    Out-Stock
    • EconoMaster - Condenser Fan Motor
    • 5.6" Diameter - 48 Frame
    • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
    • Thermally Protected
    • Totally Enclosed Air Over
    • Class F Insulation, 70°C Ambient
    • Ball Bearing
    • 1/2" Diameter Shaft with Double Flat
    • 36" Leads
    • Extended Studs Lead End, Mounting Holes in Shell, Belly Band

    $121.80 USD

    Sold Out

    Add to wishlist
    SKU:
    EM3403F
    ID:
    HM104-1S9-0014
    Categories:
    Condenser Fan ECM Motors / HVAC / HVAC Motors

    SPECIFICATIONS

    Nameplate Specifications
    UPC786674068897
    Output HP1/6 Hp
    Frequency60 Hz
    Current1.0-1.1 A
    Service Factor1
    DutyAir Over
    Frame48Y
    Thermal ProtectionAutomatic
    ULRecognized
    Voltage208-230 V
    Speed825 rpm
    Phase1
    Insulation ClassF
    EnclosureTotally Enclosed Air Over
    Ambient Temperature70 °C
    CSAY
    Technical Specifications

    Electrical TypePermanent Split Capacitor
    Poles8
    MountingExtended Studs
    Opp Drive End BearingBall
    Shaft TypeFlat
    Frame Length3.50 in
    Shaft Extension6.0 in
    RotationReversible
    Frame Material Steel
    Overall Length10.71 in
    Shaft Diameter0.500 in


    MANUALS
