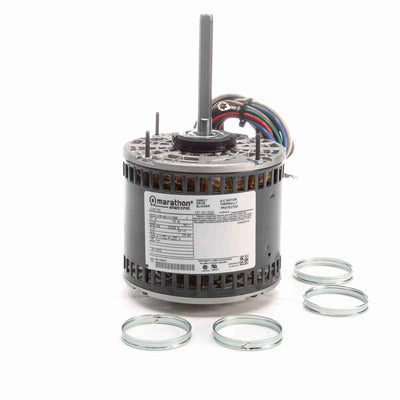

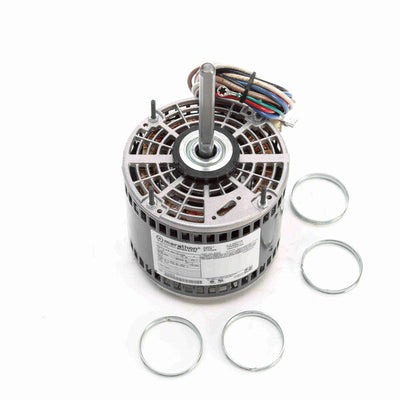

Marathon Direct Drive Motor, 1075 RPM, 1/3 HP, 115 V, 48Z Frame, Open Air Over

Availability:
In-Stock
  • Open frame and brackets
  • Multi-speed model
  • Grommeted lead exit, Weather resistant reversing plug
  • 2-1/4” resilient ring mounting(base not included.)
  • 2 1/2” adapter rings supplied, shipped loose in box
  • 3/4" thru-bolts, shaft end, 30” long leads
  • Automatic reset thermal protector
  • Capacitor not included.
  • HM106-0029 replaces the following brands and item numbers: Designed as replacements for direct drive furnace blower motors, air conditioners, exhaust fans and other applications

$192.00 USD

Title
Buy Now
SKU:
X002
ID:
HM106-1S9-0029

PRODUCT INFO

Applications
Designed as replacements for direct drive furnace blower motors, air conditioners, exhaust fans and other applications

Features
Automatic thermal protection. Reversible rotation. Horizontal mount. 2-1/4" resilient rings. 26" long leads with 1/4" straight terminals. 1/2" x 4" long flatted shaft with flat 3-1/2" long. 3/4" long studs on 5.12" bolt circle, #10-32 thread on shaft end

SPECIFICATIONS

Nameplate Specifications
UPC722856038548
Output HP1/3 Hp
Frequency60 Hz
Current4.6 A
Service Factor1
DutyContinuous
Frame48Z
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage115 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Ring - Extended Studs
Opp Drive End BearingBall
Shaft TypeSingle Special Extension
Frame Length4.25 in
Shaft Extension4.06 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length
9.75 in
Shaft Diameter0.500 in
