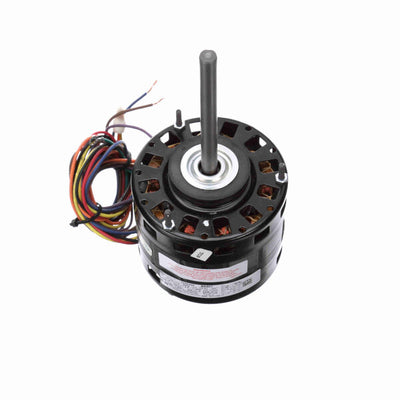

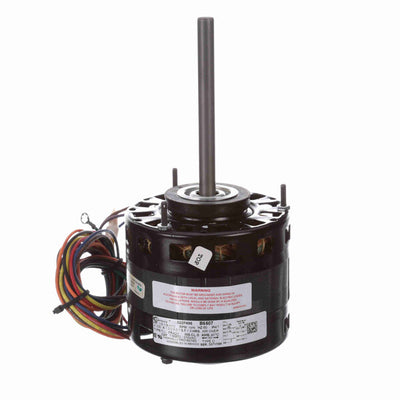

Century Direct Drive Motor, 1075 RPM, 1/5-1/6-1/10 HP, 230 V, 42 Frame, Open Air Over
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
$320.25 USD
PRODUCT INFO
Applications
Direct drive furnace blowers, shaft mounted fans, unit heaters or any continuous duty application where the motor is located in the airstream
Features
Automatic reset thermal protectors. All motors have 30" leads
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674012708 |
| Output HP | 1/5-1/6-1/10 Hp |
| Frequency | 60 Hz |
| Current | 1.3,0.9,0.7 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 5.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 9.92 in |
| Shaft Diameter | 0.500 in |
