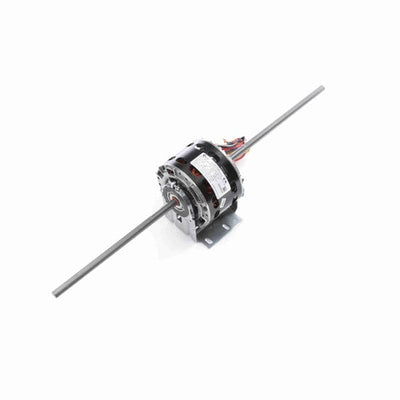

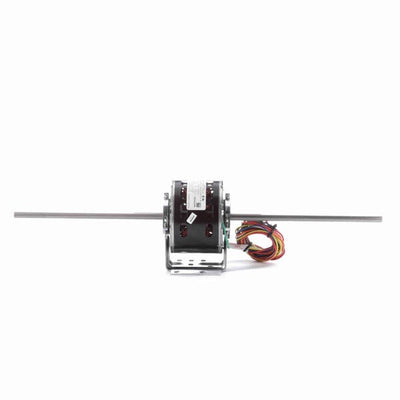

Century Window+Room Air Conditioniq, 1050 RPM, 1/10-1/20-1/30-1/40-1/70 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 54" Leads
- Resilient Base
- HM105-0018 replaces the following brands and item numbers: York, American Standard, Dunham Bush, Nesbitt, Trane, International, Chrysler, Modine, McQuay, Singer, Carrier, Bohn, Fedders, Climatrol and others
$254.10 USD
PRODUCT INFO
Applications
Direct replacement for York, American Standard, Dunham Bush, Nesbitt, Trane, International, Chrysler, Modine, McQuay, Singer, Carrier, Bohn, Fedders, Climatrol and others
Features
Double shaft, flatted both extensions
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674006097 |
| Output HP | 1/10-1/20-1/30-1/40-1/70 Hp |
| Frequency | 50 Hz |
| Current | 3.2 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.50 in |
| Shaft Extension | 10.69X.5X10.69 in |
| Rotation | Clockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 24.88 in |
| Shaft Diameter | 0.500 in |
