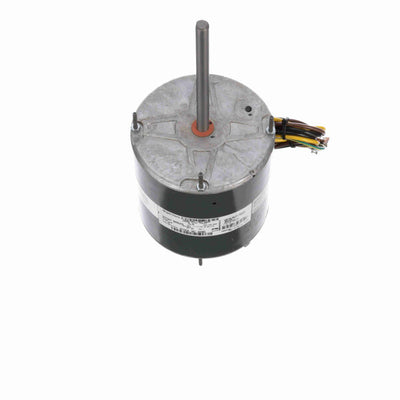

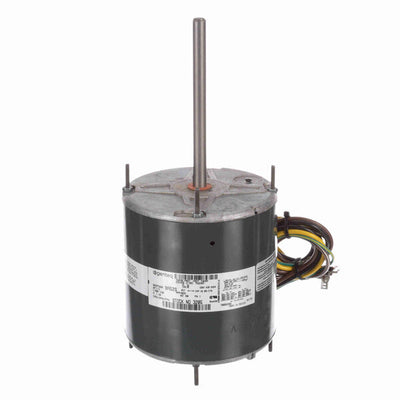

Genteq Condenser Fan Motor, 825 RPM, 1/3 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
Out-Stock
  • Condenser Fan - Heat Pump Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Clampbolts, Belly Band

$332.00 USD

Sold Out

SKU:
3205
ID:
HM101-1S9-0008

PRODUCT INFO

Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp mounting

Features
Automatic thermal protection Extended thru-bolts, 3/4" long on SE end and 1/2" on OSE end Mounting holes in shell for capacitor bracket 1/2" diameter shaft 6" long with 2 full flats at 90° Electrically reversible

SPECIFICATIONS

Nameplate Specifications
UPC815585020073
Output HP1/3 Hp
Frequency60 Hz
Current1.90 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed825 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles8
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeDouble Flat
Frame Length5.07 in
Shaft Extension6.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length11.81 in
Shaft Diameter0.500 in
