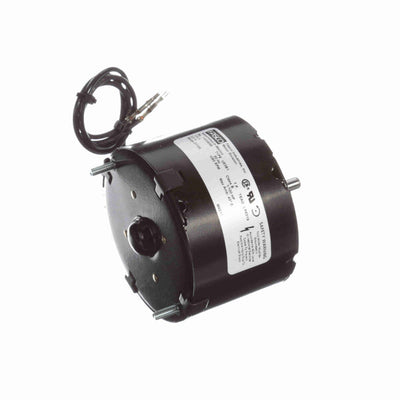

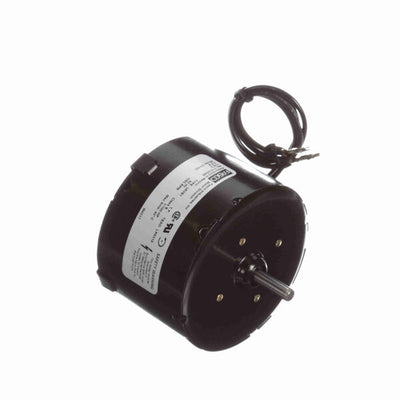

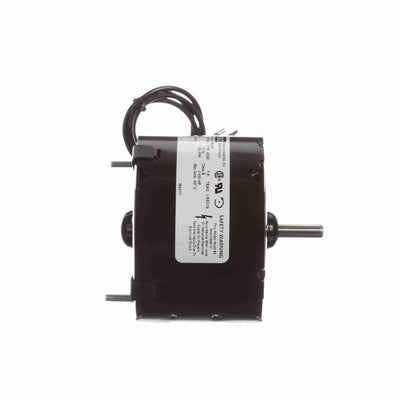

Fasco OEM Replacement Motor, 1085 RPM, 1/100 HP, 115 V, 3.3" Diameter, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 10" Leads with PIN Terminals
- Extended Studs Lead End
- HM102-0082 replaces the following brands and item numbers: 17-09-6779, VQT-90, JA2M087R
$143.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022161 |
| Output HP | 1/100 Hp |
| Frequency | 60 Hz |
| Current | 0.50 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1085 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 2.07 in |
| Shaft Extension | 1 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 3.63 in |
| Shaft Diameter | 0.250 in |
